34 Rockwell Automation Publication 1734-UM014B-EN-P - June 2013
Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 Software

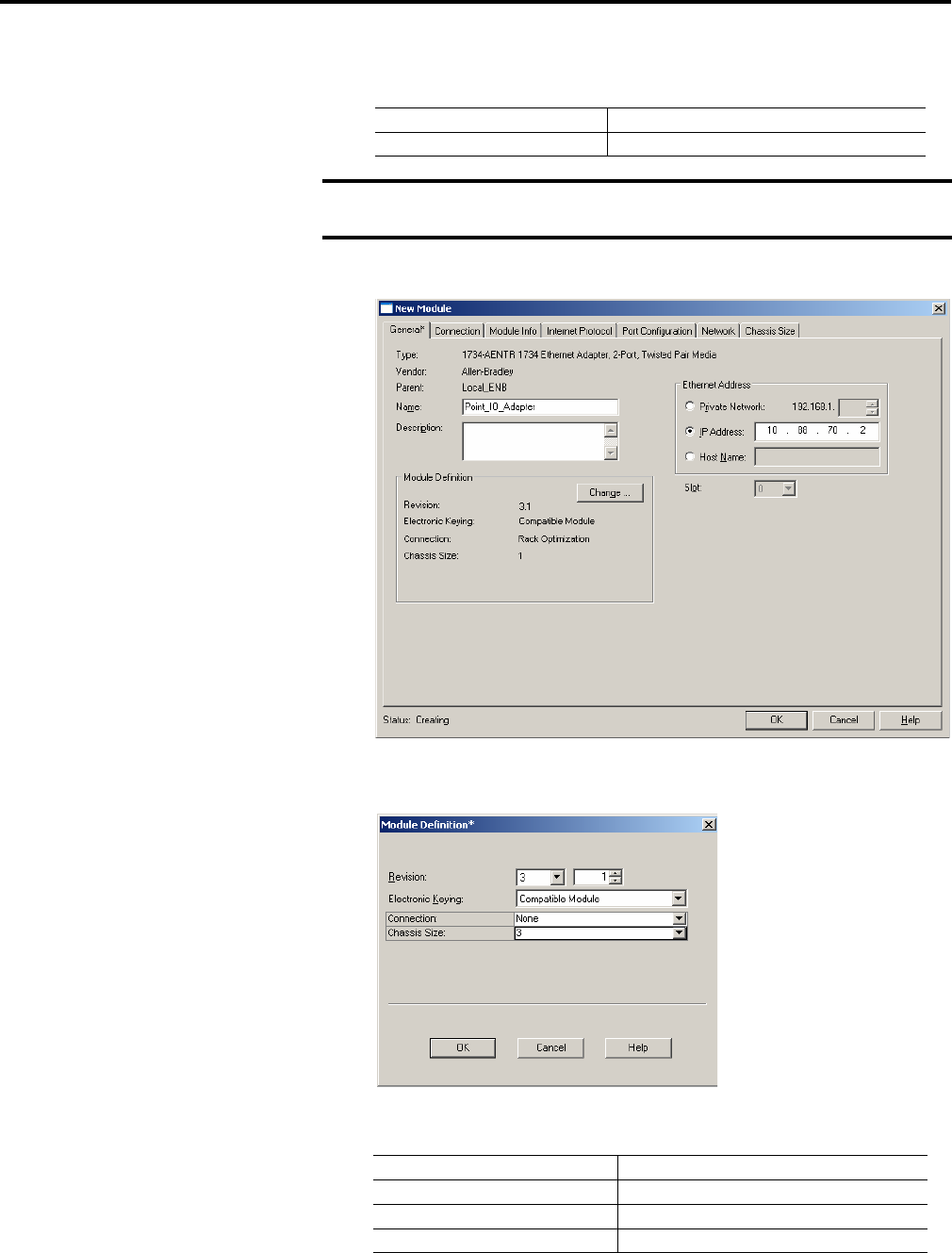

3. Select your adapter from the list, and click OK, noting that we entered
these values on the General Tab of the New Module dialog.
.
The New Module dialog opens.
4. Click Change...
The Module Definition dialog opens.
5. Choose values for Connection, Chassis Size, Electronic Keying and
Revision, noting that we used the following values:
Name POINT_IO_Adapter
IP Address 10.88.70.2
IMPORTANT
The Slot field appears grey because the slot is automatically 0 for
the 1734-AENTR adapter.
Connection None
Chassis Size 3
Electronic Keying Compatible Module
Revision 3.1
