56 Rockwell Automation Publication 1734-UM014B-EN-P - June 2013
Chapter 5 Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software
Add the POINT I/O Module and Configure for Rack-optimized
Connection

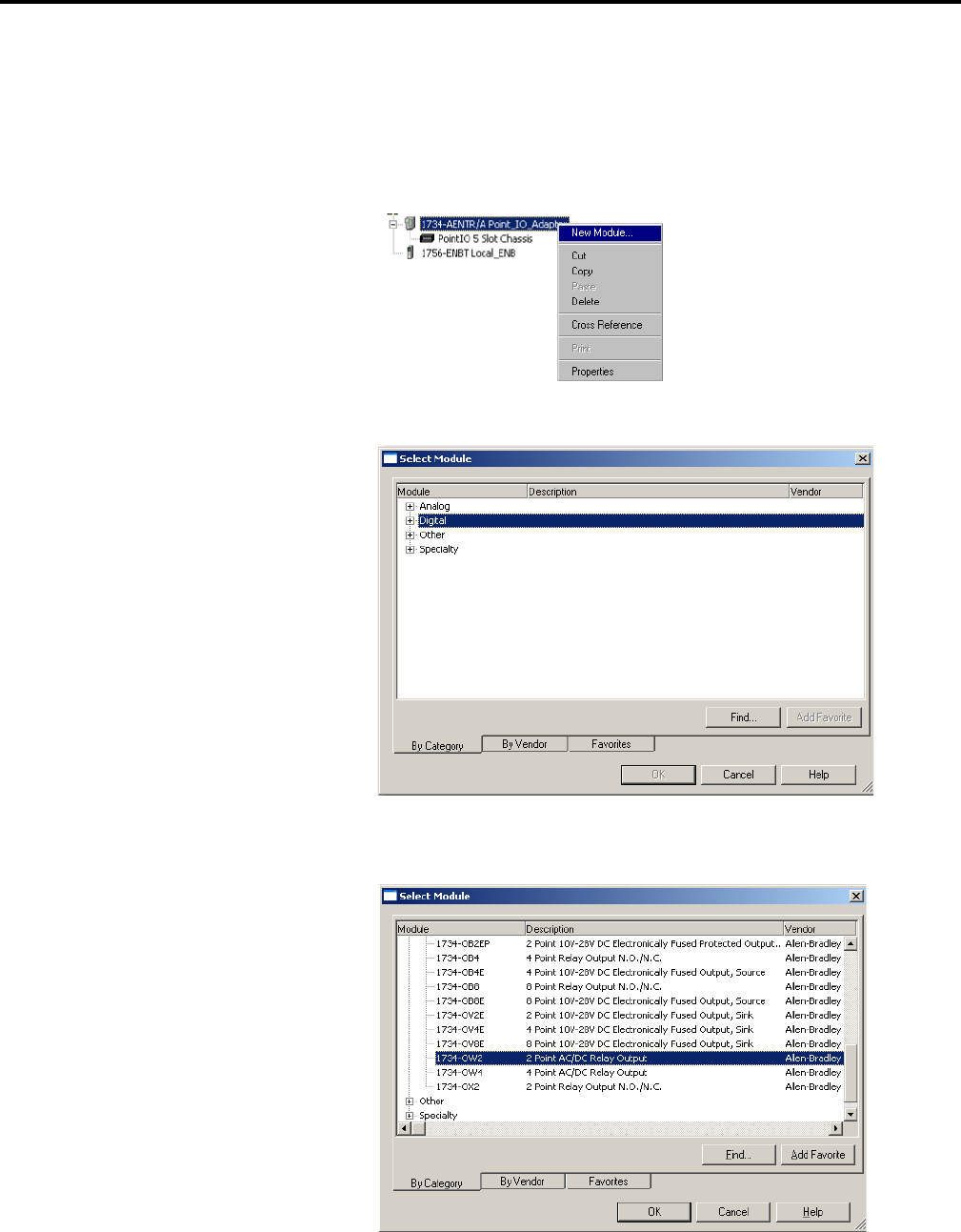

1. Right-click the POINT I/O Chassis in the I/O Configuration folder and
select New Module
The Select Module dialog opens.
2. Expand the Digital tree.
3. Select the 1734-OW2 relay output module from the list and click OK.
