Configure the Adapter for Direct Connection in RSLogix 5000 Software Chapter 4
Connection choices are the following:
• None – the adapter only makes a direct connection to each of the
modules referenced by the data.
• Rack optimization – digital I/O data is collected into a rack image. This
rack image does not include analog or specialty I/O modules.
• Listen only - rack optimization – read or verify input data only, but does
not control the modules. When you have multiple controllers, one
controller is used to control and the other controllers are used to
monitor. When the owning controller of rack-optimized connection
closes the connection, the Listen-Only data will also stop.
6. Choose None as Connection, because we are only making direct
connections, then click OK. There is no need to have a rack-optimized
connection if all I/O connections to the POINT I/O modules are directly
connected.

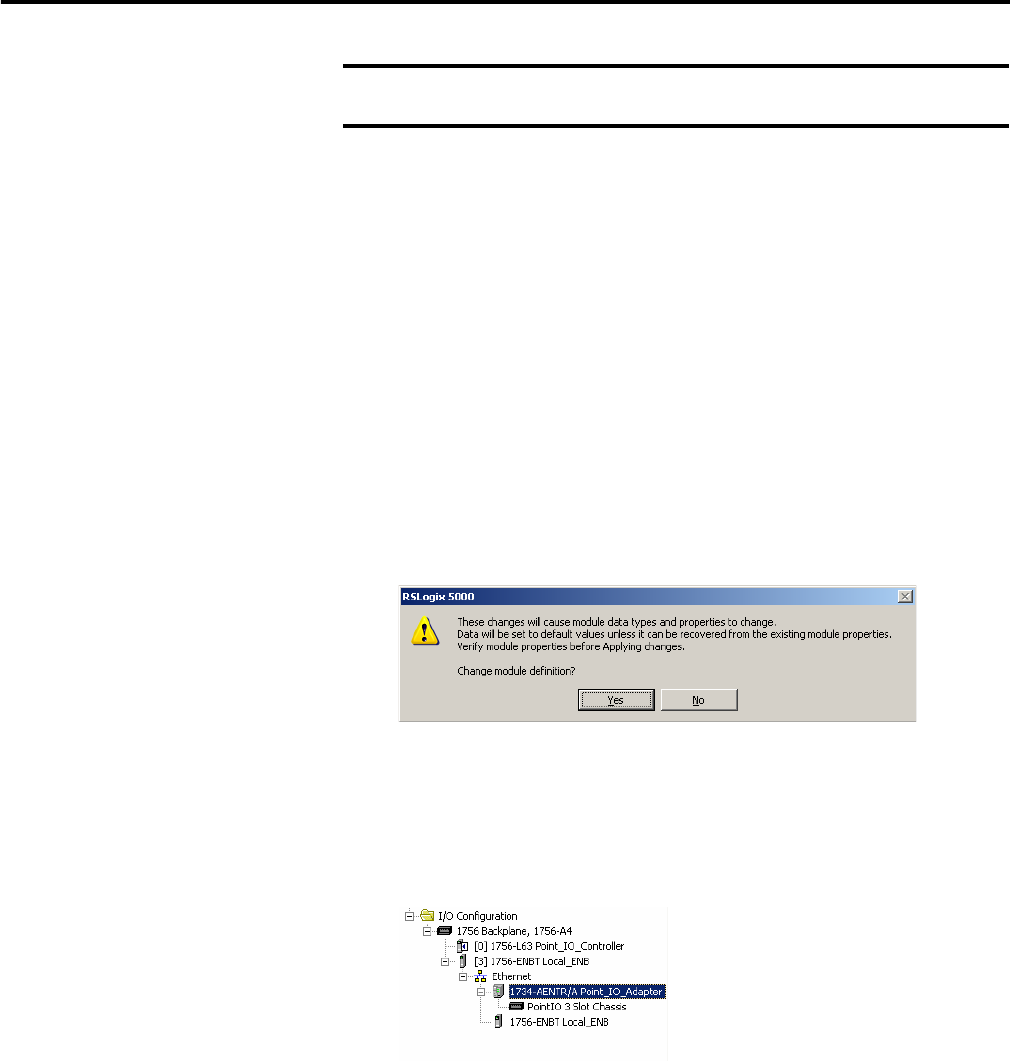

A dialog box opens.
The requested packet interval (RPI) is disabled because you have chosen
None as the Connection.
7. Click OK to accept the configuration.
The name of your adapter appears in the Ethernet folder.
Add the POINT I/O Modules to the I/O Configuration
You now add POINT I/O modules to the I/O Configuration List under the
adapter.
The chassis size value equals 1 for the adapter plus the number of I/O
modules installed (physically present on the I/O backplane).
