170 C2630M-B (4/08)
Understanding the Data Format Page
The DX8100 allows you to create a device data format for each ATM/POS device. You can assign a unique name to each device data format
template.
The following figure shows the Data Format page. Access the Data Format page from the Port/Device page. For information on accessing the
Data Format page, refer to Setting Up DX8100 Network Access on page 151. For information about the Port/Device tab, refer to Setting Up Port
and Device Communication Properties on page 161.

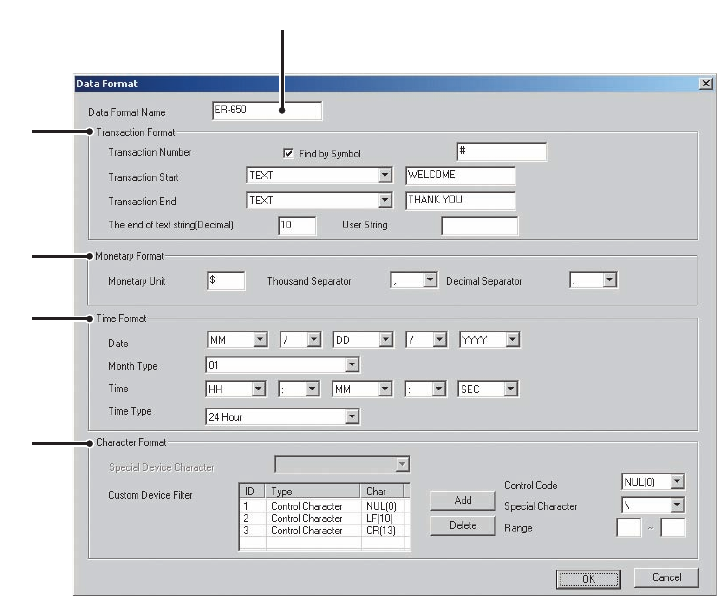

Figure 151. Data Format Page
ᕡ
ᕢ
ᕣ
ᕤ
ᕥ
