PRINCIPLES OF OPERATION
STB1
STB2
STB3
LF COMMON
T3 T3 T3
STB1
STB2
STB3
LF COMMON
T2 T2 T2
STB1
STB2
STB3
LF COMMON
T1 T1 T1

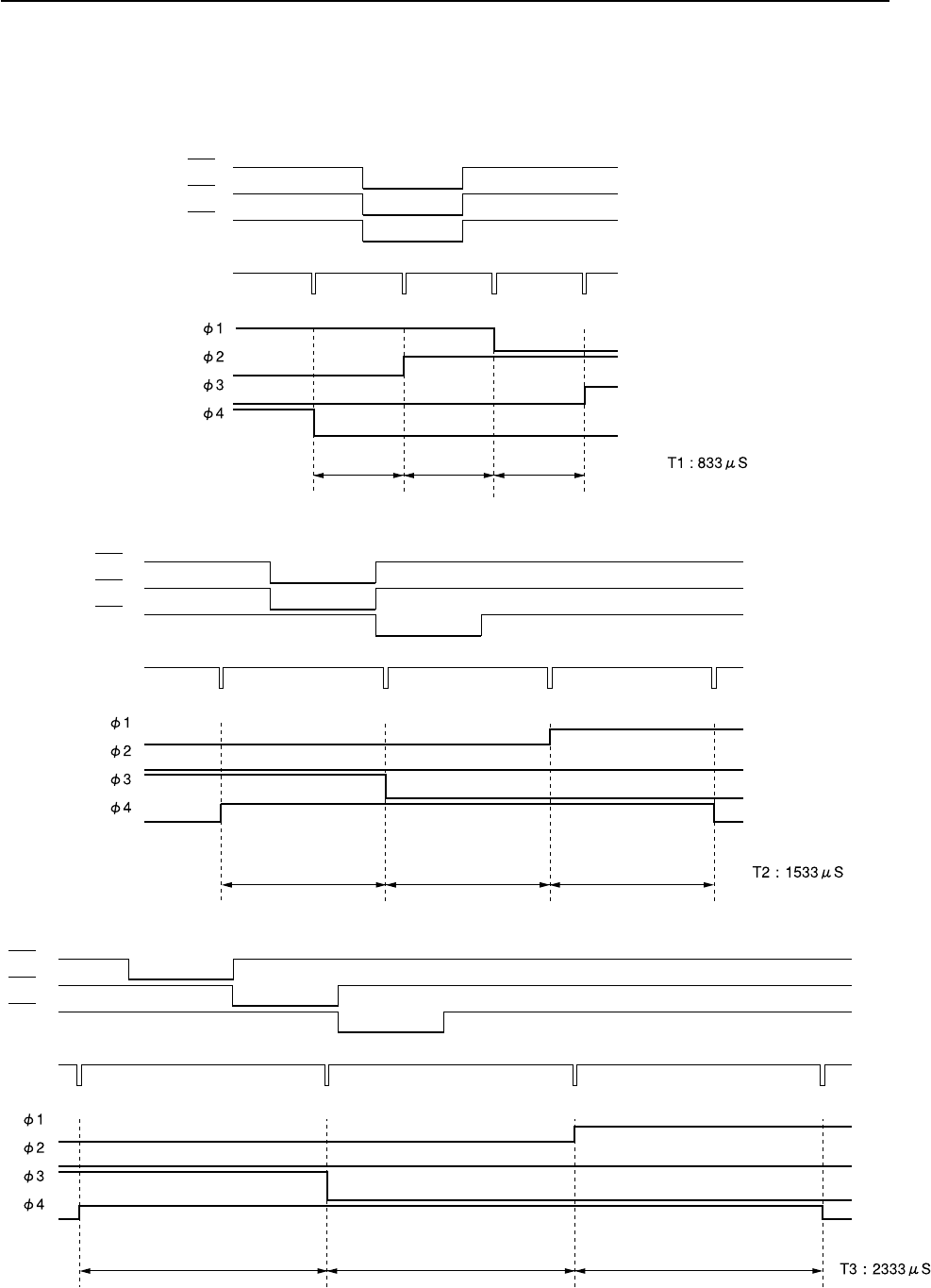

The feed-motor pulse width varies according to the strobe output pattern (where the output pattern is determined by the
print rate, as described above). The following diagram shows the pulse width for each pattern.
Pattern 1
Pattern 2
Pattern 5
Fig. 2-12 Pulse Width by Pattern
