PARTS REPLACEMENT
– 29 –
3
2
1
1
2
4
6
5
1
3

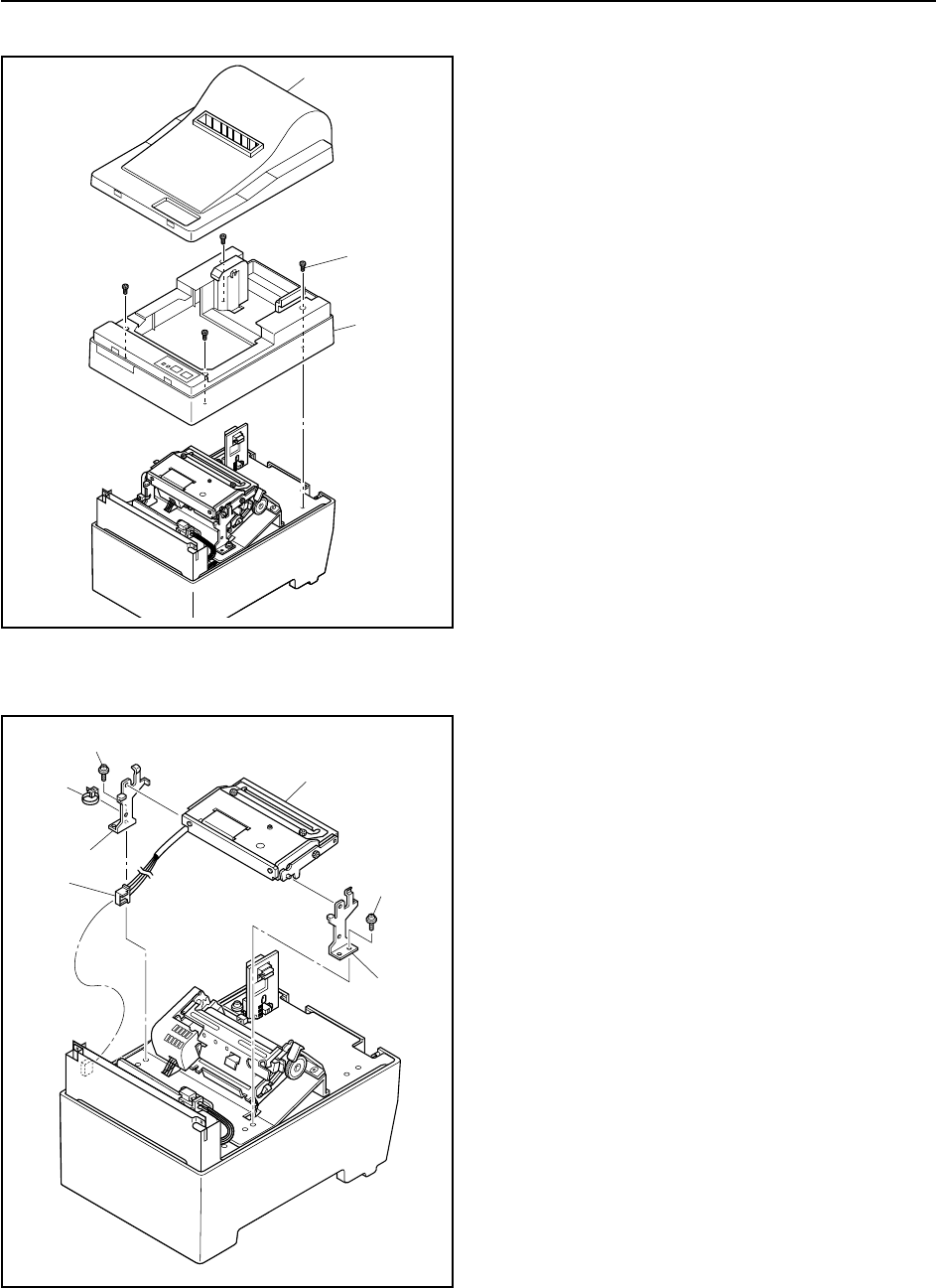

1. Upper Case Unit
(1) Switch off the power, and unplug the power cord
from the power outlet.
(2) Remove:
Cover 1
Four tapping screws 2
Upper case unit 3
Remove the upper case unit by lifting it up and
off.
2. Auto-Cutter Unit
<Model TSP242-24/120/230 only>
(1) Remove:
Upper case unit (See 1. above.)
Two tapping screws 1
Wire band 2
Cutter Holder Plates R,L 3, 4
Cutter Unit 5
Connector 6
