I _ ADDITIONAL REFERENCE

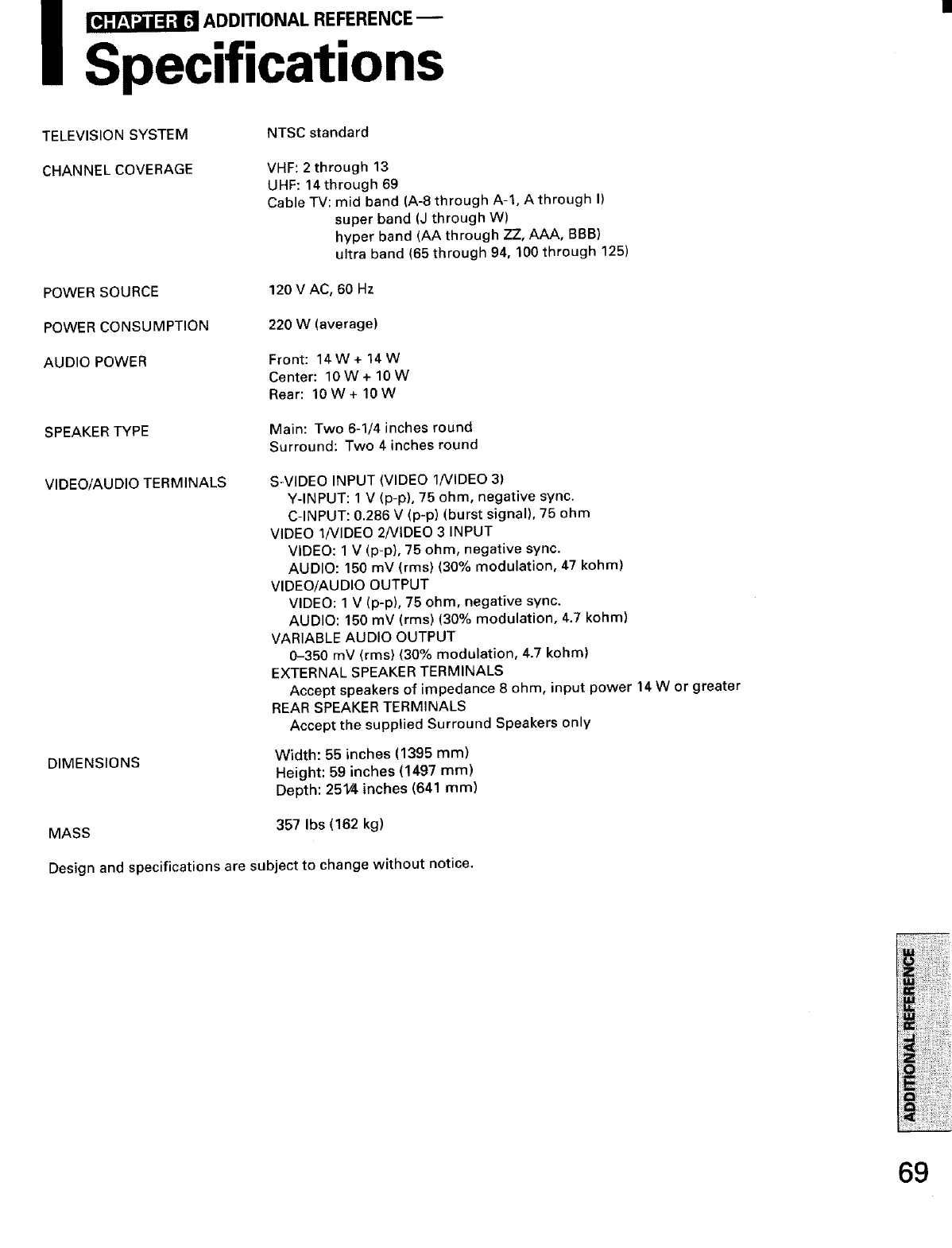

Specifications
TELEVISION SYSTEM NTSC standard
CHANNELCOVERAGE
VHF: 2 through 13
UHF: 14 through 69
Cable TV: mid band (A-8 through A-l, A through I)
super band (J through W)
hyper band (AA through ZZ, AAA, BBB)
ultra band (65 through 94, 100 through 125)
POWER SOURCE 120 V AC, 60 Hz
POWER CONSUMPTION
220 W (average)
AUDIO POWER
Front: 14W+ 14W
Center: 10W+10W
Rear: 10 W+ 10 W
SPEAKER TYPE
Main: Two 6-1/4 inches round
Surround: Two 4 inches round
VIDEO/AUDIO TERMINALS
DIMENSIONS
S-VIDEO INPUT (VIDEO 1NIDEO 3)
Y-INPUT: 1 V (p-p), 75 ohm, negative sync.
C-INPUT: 0.286 V (p-p) (burst signal), 75 ohm
VIDEO 1NIDEO 2NIDEO 3 INPUT
VIDEO: 1 V (p-p), 75 ohm, negative sync.
AUDIO: 150 mV (rms) (30% modulation, 47 kohm)
VIDEO/AUDIO OUTPUT
VIDEO: 1 V (p-p), 75 ohm, negative sync.
AUDIO: 150 mV (rms) (30% modulation, 4.7 kohm)
VARIABLE AUDIO OUTPUT
0-350 mV (rms) (30% modulation, 4.7 kohm)
EXTERNAL SPEAKER TERMINALS
Accept speakers of impedance 8 ohm, input power 14 W or greater
REAR SPEAKER TERMINALS
Accept the supplied Surround Speakers only
Width: 55 inches (1395 rnrn)
Height: 59 inches (1497 mm)
Depth: 251/4 inches (641 ram)
MASS 357 Ibs (162 kg)
Design and specifications are subject to change without notice.
69
