19









STEP2:SURFACEBURNERS

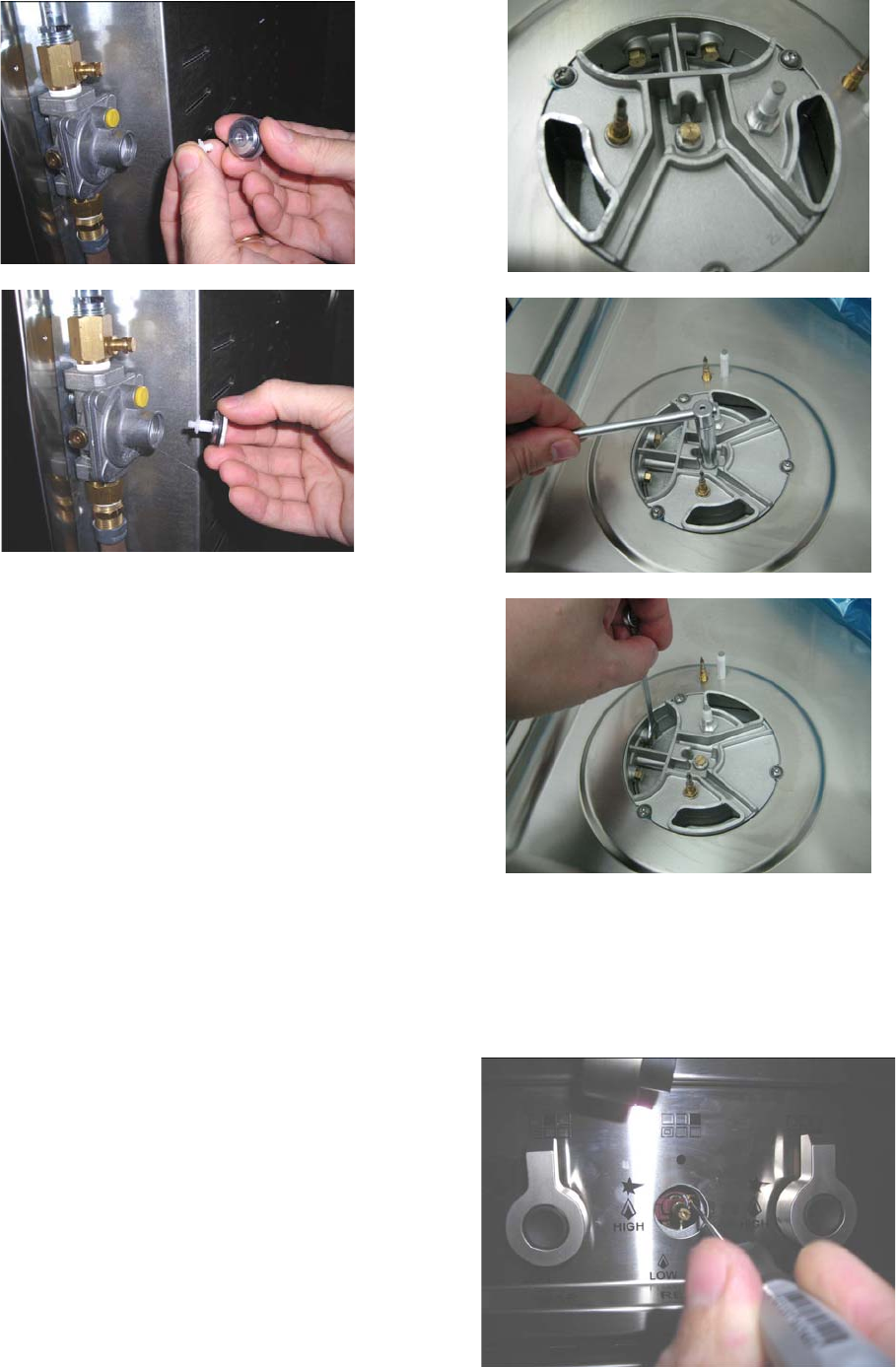

Toreplacethenozzlesofthesurfaceburners,lift

uptheburnersandunscrewthenozzlesshipped

withtherangeusinga7mm{socketwrench).

Replacenozzlesusingtheconversionsetsupplied

with the range or by a Bertazzoni authorized

parts warehouse. Each nozzle has

 a number

indicatingitsflowdiameterprintedonthebody.

Consultthetableonpage20formatchingnozzles

toburners.















STEP3:MINIMUMFLAMEADJUSTMENT



WARNING!

Theseadjustmentsshouldbemadeonlyforuse

oftheappliancewithnaturalgas.Forusewith

liquidpropanegas,thechokescrewmustbe

fullyturnedinaclockwisedirection.



SURFACEBURNERS

1. Light oneburner ata timeand setthe

 knob

totheMINIMUMposition(smallflame).

2. Removetheknob.

3. The range is equipped with a safety valve.

Usingasmall‐sizeslottedscrewdriver,locate

the choke valve on the valve body and turn

thechokescrewtotheright orleftuntilthe

burnerflameisadjusted

todesiredminimum.

4. Make sure that the flame does not go out

when switching quickly from the MAXIMUM

totheMINIMUMposition.






