Before installing the cooker, it is necessary
to assemble the supplied feet. You can find
them into the oven cavity.
1. Remove the hob pan supports, the
burner caps and crowns and the oven
accessories.

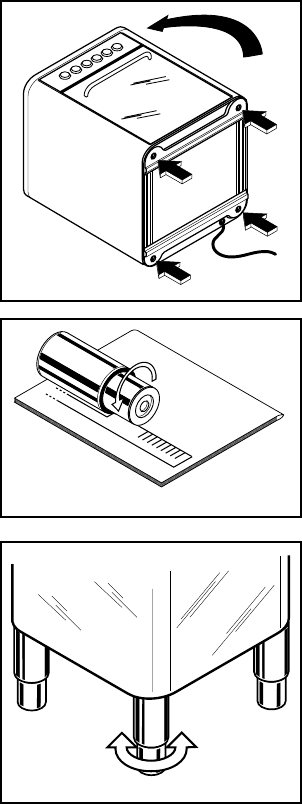

2. Carefully lean the cooker on its back (Fig.
1), paying attention not to cause any
damage.
3. Adjust the feet height. A height indicator
is printed on the last page of this
Instruction book (Fig. 2). Lean the foot
on the page and make the foot match
with the indicator, then unscrew the
bottom part of the foot, until you obtain
the required height. Repeat the same
operation with the other feet.
4. Screw the feet into the relevant holes
indicated in figure 1.
5. Lift the cooker in vertical position.
Replace the crowns, the burner caps, the
hob pan supports and the oven
accessories.
6. If necessary, adjust the cooker horizontal
levelling by turning the bottom part of the
feet, until the appliance is completely
stable. (Fig. 3). A spirit level should be
placed on a cake tray on one of the
shelves to confirm that the appliance is
correctly levelled.
Feet Assembly
830
840
850
860
870
880
890
900
910
FO 2284
FO 2285
Fig. 1
Fig. 2
Fig. 3
