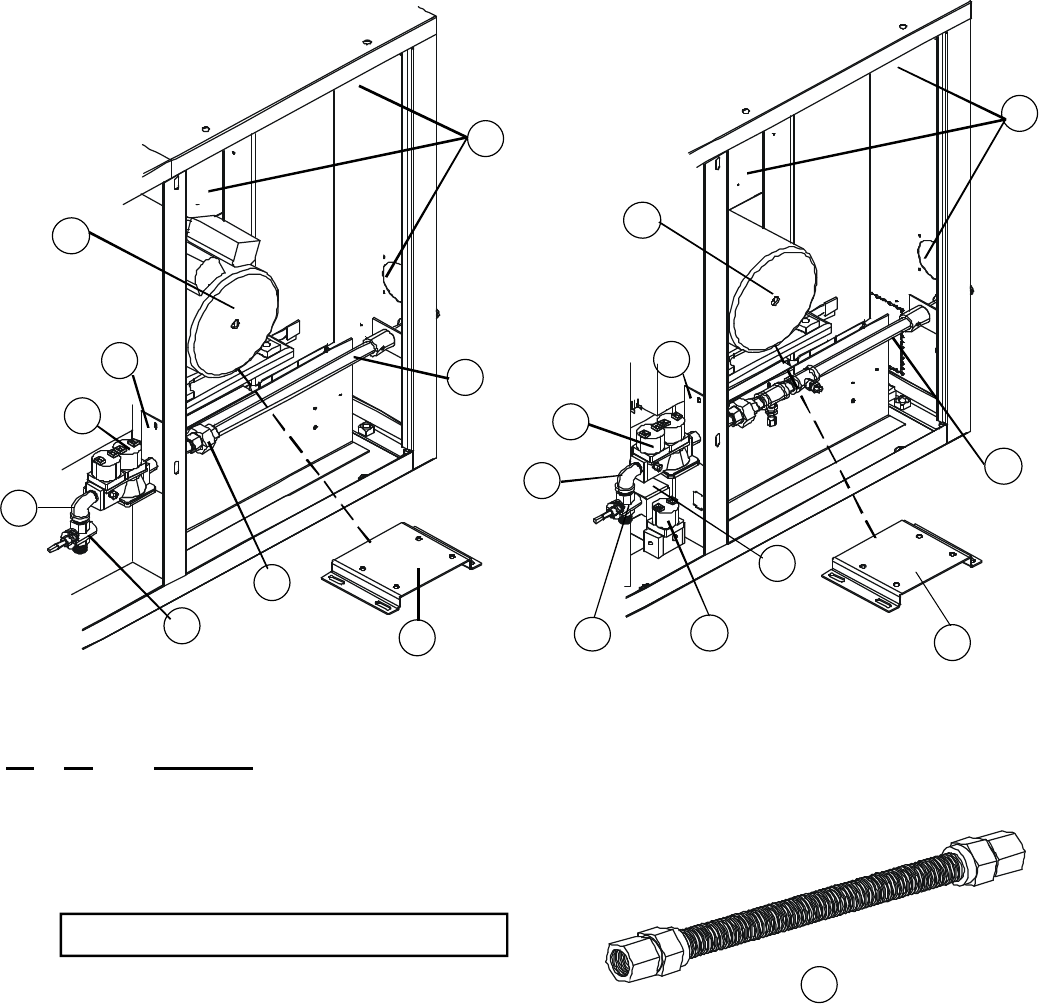

SIDE VIEW, RIGHT HAND
DECEMBER 31, 2003 3 AC500
Ref. Part
No. No. Description
1 30685 Motor, 115V, 3/4 HP, 1 PH, 2 SP, 60 HZ
(Qty 1) Units before 01/01/97
30685.H Motor, 115V, 3/4 HP, "HOWELL"
1 34111 Motor, 115V, 3/4 HP, 1 PH, 2 SP, 60 HZ
(Qty 1) Units after 01/01/97
2 31601 Motor Adapter Bracket
NOTE: For units before 01/01/97 this bracket will not
fit the Howell Motor.
3574 Terminal Block, 65 AMP, 600V (Qty 1)
3 21134 Axial Fan, 115V, 3" (Qty 3)
22711 Lug, Grounding & Screw (Qty 1)
30721 Harness, Wiring Power, Rear (Qty 1)
4 22190 Dual Solenoid Valve/Pressure Regulator LP
4 M5495 Dual Solenoid Valve/Pressure Regulator NAT
18612 Spring, Solenoid Valve, Nat to LP (Qty 1)
23007 Spring, Solenoid Valve, LP to Nat (Qty 1)
5 R4435 Gas valve, manual
R0364 Knob, Square D, controls manual gas valve
6 R6490 Pilot Valve, Units after 01/01/97
7 34088 Bracket, Pilot Valve, Units after 01/01/97
8 30957 Flex Hose, 1/2" ID (Gas) (Qty 1)
9 15875 Thru Pipe, Units before 01/01/97
10 3807 Union, for thru pipe Units before 01/01/97
11 30955 Thru Pipe, Units after 01/01/97
12 M0317 Elbow, 1/2"
13 30952 Mounting Plate
OLD-BEFORE 01/01/97
NEW-AFTER 01/01/97
5
1
1
4
5
9
11
LOOK HERE FOR
SERIAL NUMBER
LOOK HERE FOR
SERIAL NUMBER
4
6
10
3
3
13
13
12
12
2
NOTE:
Part is not depicted at
actual size.
7
2
NOTE:
Part is not depicted at
actual size.
30957
Flex Hose
**NOTE: this piece con-
nects on the under side of
the manual gas valve.
8
**See
NOTE
below.
**See
NOTE
below.
