INTELLIPLUS CONTROLS
13 KEY
DECEMBER 31, 2003 6 AC500
NOTE: Picture depicts Part 20348
Spark Box. Please use serial
number for correct part!!!
5
11
12
1
3
14
30851 IgnitionControl
HSI - Before 01/01/97
or
20348 Spark Box - After
01/01/97
13
10
31767 Contactor
Before 01/01/97
33910 Relay
After 01/01/97
8
9
7

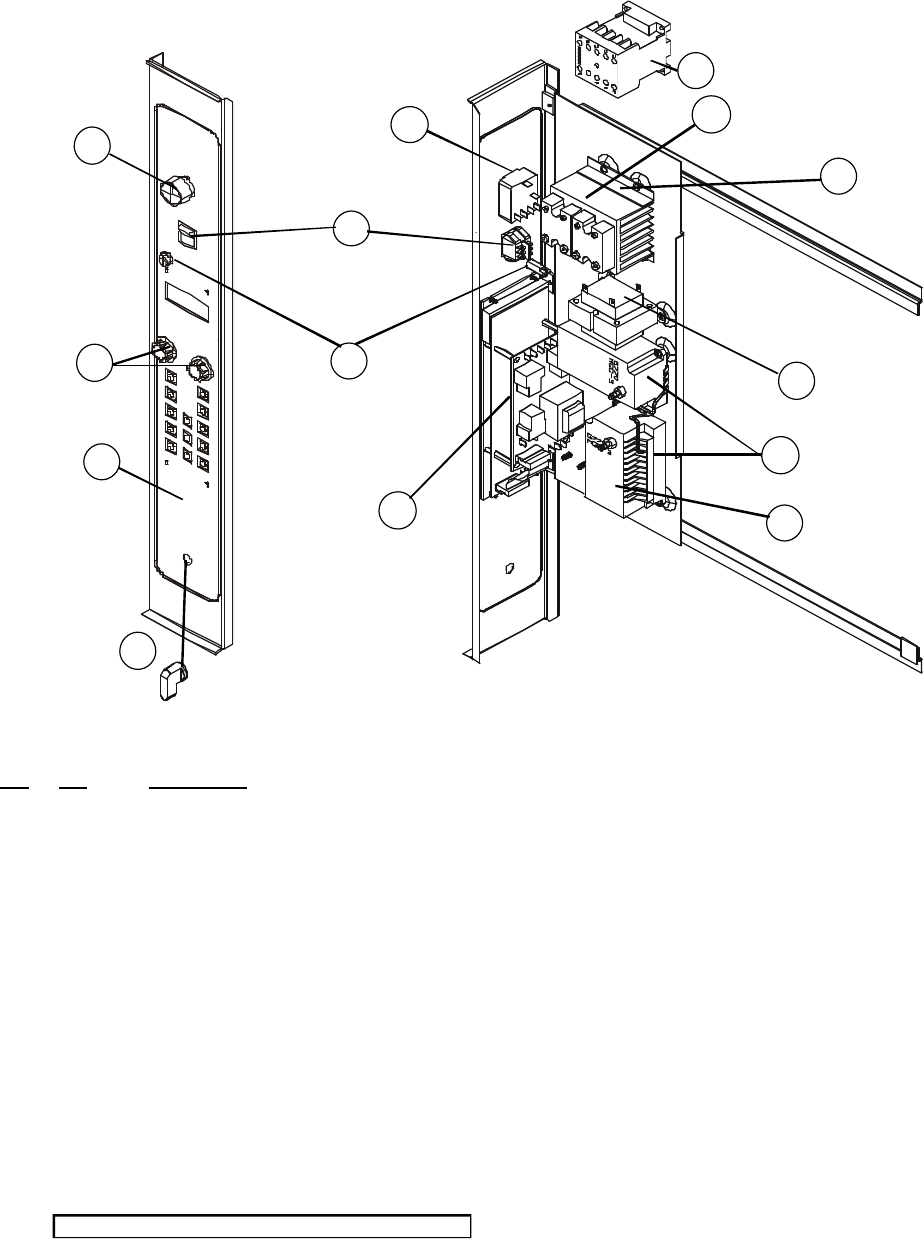

Ref. Part
No. No. Description
1 23391 Controller, Temperature Intelliplus (13 Key) (Qty 1)
31901 Probe, Temperature (Qty 1)
2 21443 Knob, Control Time or Temperature (Qty 2)
3 18868 Mode Selector Switch (3 Position) (Qty 1)
4 24684 Knob, Mode Selector (Qty 1)
5 19620 Light Switch, Rocker, Momentary (Qty 1)
6 18265 Indicator Light, 28V, Red, Round (Qty 1)
7 31274 Transformer, 120V to 24V
(Units before 01/01/97 use Qty 2 and Units after 01/01/97 use Qty 1)
8 31767 Contactor, 3 Pole, 120V Coil (Qty 1) Units before 01/01/97
9 33910 Relay Assy (Qty. 1) Units after 01/01/97
10 31363 Bracket, to mount 31767 (Qty 1)
31717 Suppressor Assy. (Qty 1) (for 31767)
31761 Harness, Wiring Lights (Qty 1)
34281 Harness, Wiring front Intelliplus Units after 01/01/97
11 34254 Decal, Lexan Control
12 R0364 Knob, Square D, controls manual gas valve
R4435 Gas Valve, manual Units before 01/01/97
R6490 Pilot Valve Units after 01/01/97
NOTE: Gas valves are pictured on page 3
13 30851 Ignition Control, Hot Surface Ignition Units before 01/01/97
14 20348 Spark Box Units after 01/01/97
