Blodgett AC-500 Oven User Manual



Ref. Part
No. No. Description
1 31022 Ignitor, Hot Surface (Qty 2)
2 30774 Bracket Assy, Ignitor (Qty 2)
3 31331 Probe, Flame Sensing (Qty 2)
4 30722 Burner Assy. (Qty 2)
5 30943 Orifice, Main Burner, Nat (MTD #46) (Qty 4)
5 31828 Orifice, Main Burner, LP (MTD #55) (Qty 4)
6 30713 Manifold, Burner (Qty 1)
30958 Manifold Assy, Nat (w/ Harness) (Qty 1)
Complete assy as shown above
31829 Manifold Assy, LP (w/ Harness) (Qty 1)
Complete assy as shown above
7 30957 Flex Hose, 1/2" ID (Gas) (Qty 1)
33052 Relay & Hardware 24V, for Gas sytem
shutoff
33051 Relay & Hardware 240V, for Gas system
shutoff
DECEMBER 31, 2003 8 AC500

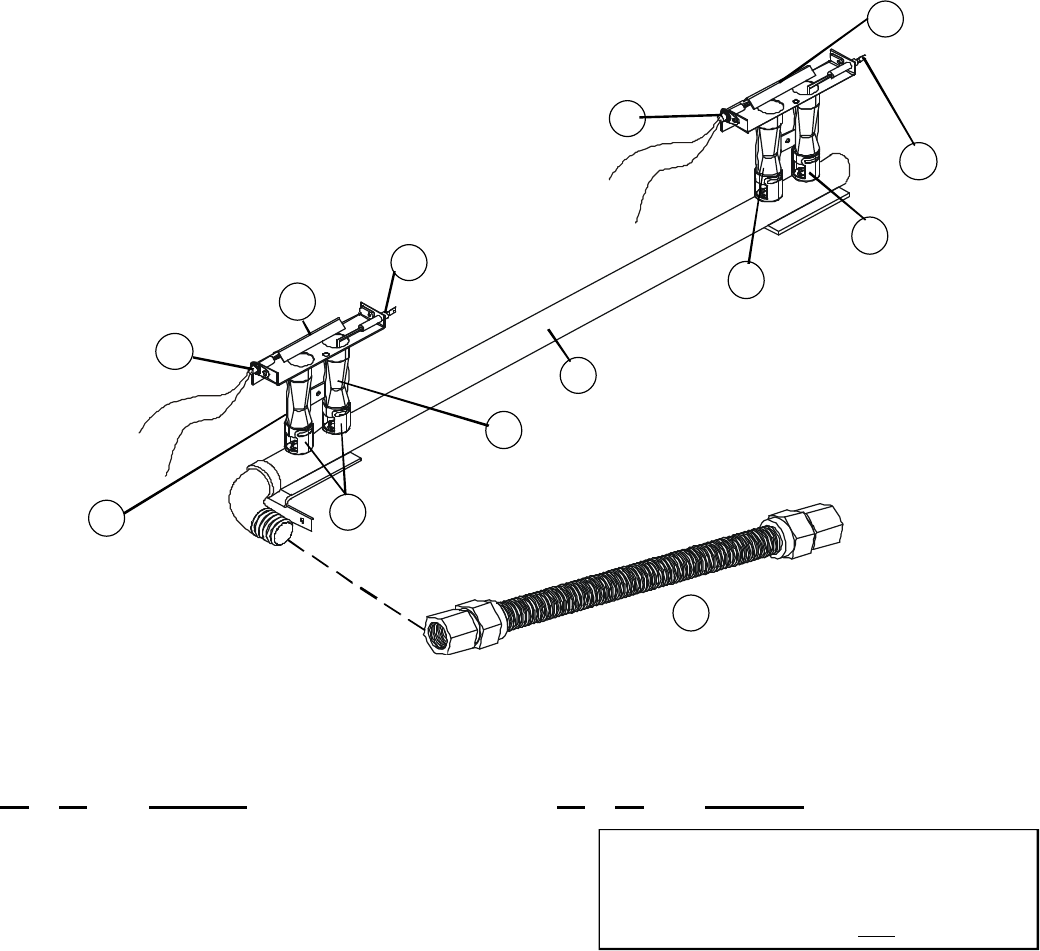

GAS MANIFOLD ASSEMBLY
FOR UNITS BEFORE 11/25/98
SERIAL NUMBER 112598RF008T
4
1
2
3
6
40
1
2
3
5
4
4
.
Ref. Part
No. No. Description
NOTE: Hot Surface Ignition is standard on units
before 01/01/97, however the manifold
changes did not occur until 11/24/98.
PLEASE BE SURE TO HAVE SERIAL
NUMBER when ordering ANY gas components
7
