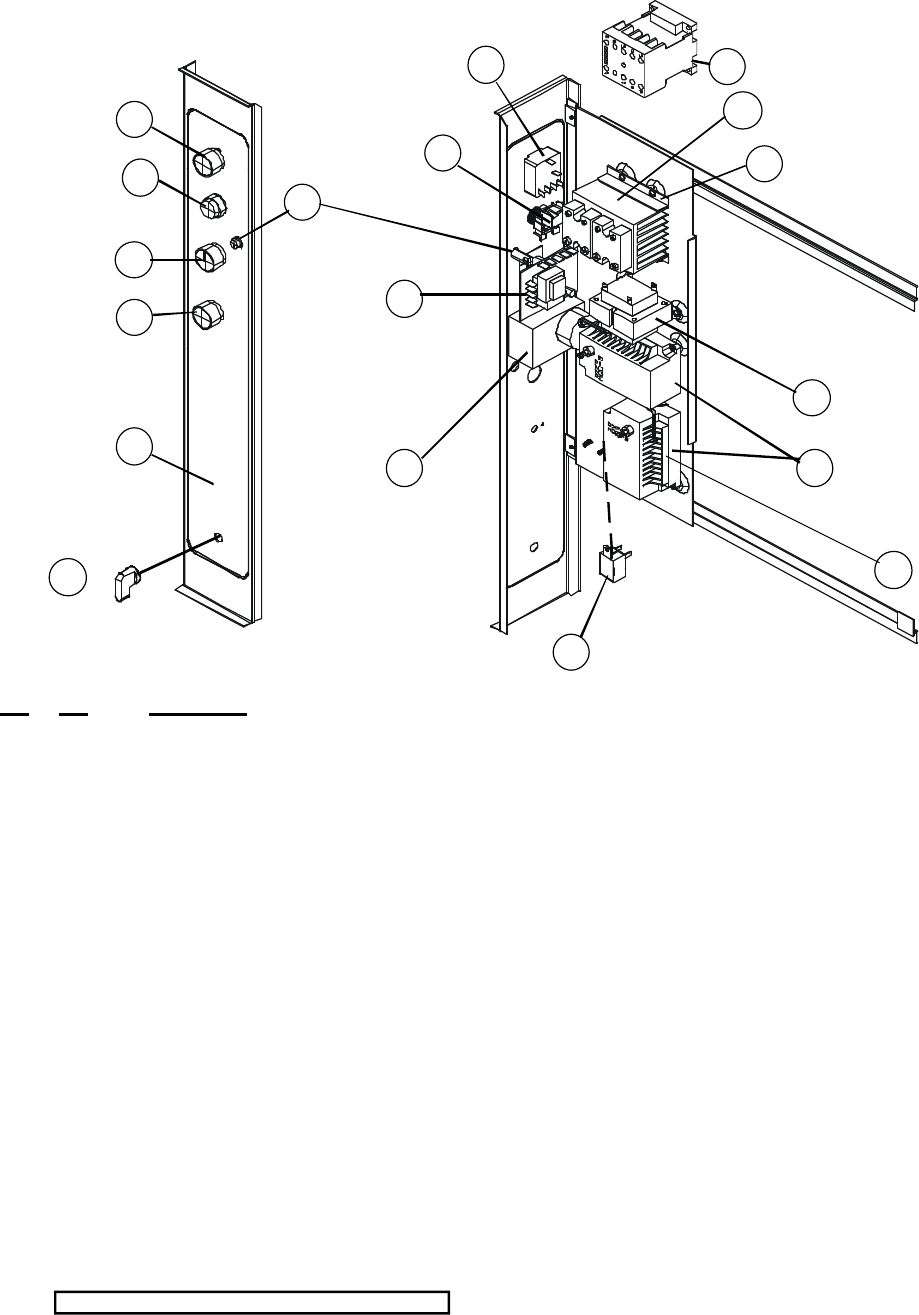

DECEMBER 31, 2003 4 AC500
SOLID STATE MANUAL CONTROLS
Ref. Part
No. No. Description
1 18578 Controller, Temperature (Qty 1)
30712 Probe, Temperature (Qty 1)
18234 Potentiometer, Remote (Qty 1)
2 24684 Knob, Temperature (Qty 1)
31839 Bracket, Temperature Control Mounting
(Qty 1)
3 21068 Mode Selector Switch (4 Position) (Qty 1)
2 24684 Knob, Mode Selector (Qty 1)
4 20349 Buzzer, 120V (Qty 1)
5 18225 Timer, 60 Minute, 120V, 60 HZ (Qty 1)
2 24684 Knob, Timer (Qty 1)
36755 Thermal Switch SPDT, Units after 06/01/2003
6 18295 Switch, Momentary for lights (Push-Button) (Qty 1)
7 18296 Contact Block, 6 Amp., 600V (Qty 1)
8 18265 Indicator Light, 28V, Red, Round (Qty 1)
9 31274 Transformer, 120V to 24V
(Units before 01/01/97 use Qty 2 and Units after 01/01/97 use Qty 1)
31717 Suppressor Assy (Qty 1) (for 31767)
10 31767 Contactor, 3 Pole, 120V Coil (Qty 1)
Units before 01/01/97
11 33910 Relay Assy Units after 01/01/97
12 31363 Bracket, to mount 31767 (Qty 1)
31846 Harness, Wiring Control (Qty 1)
13 31841 Decal, Lexan Control (Manual) (Qty 1)
14 R0364 Knob, Square D, controls manual gas valve
15 R4435 Gas Valve, manual
NOTE: Gas valves are pictured on page 3
16 30851 Ignition Control, Hot Surface Ignition Units before 01/01/97
17 20348 Spark Box Units after 01/01/97
