5.4 I
NSTALLATION OF THE
O
PTIONAL
W
ALL
C
ONTROLS
(C
ONTROLS
C12 / CM
AND
C34 / CMR)

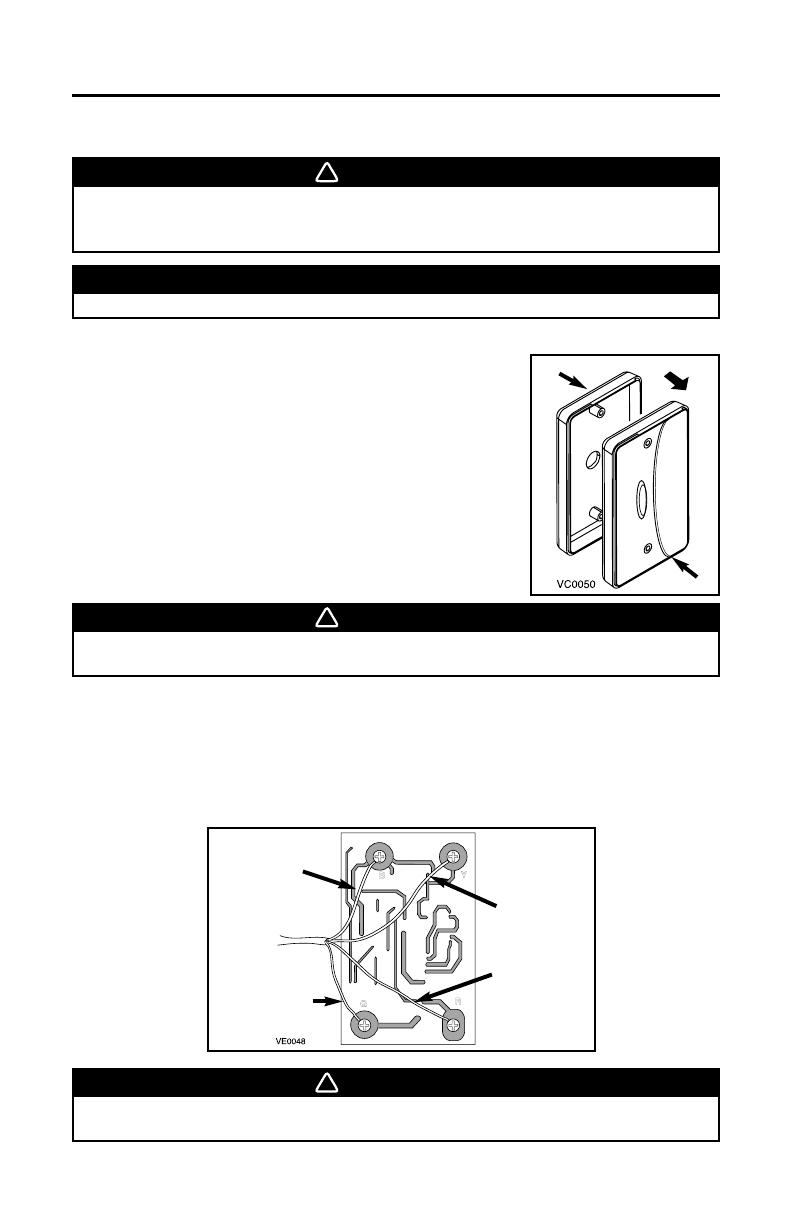

1.Determine the more convenient location for the control.
2.Remove the cover plate control (1). If you prefer to
have your optional main control mounted on an
approved outlet box or an approved mounting bracket
(not included), discard the backplate (2).
3. Take one end of the cable and pass it through the wall control backplate (or outlet
box or mounting bracket).
4. Splice back this end of the cable to access to the 4 wires. Remove the insulated
sleeve of each wire ends. Make a loop with each bare end wire to hook them
to their corresponding screw. Connect YELLOW wire to ‘’Y’’screw, RED wire to
‘’R’’screw, GREEN to ‘’G’’screw and BLACK to ‘’B’’screw. See illustration below.
CAUTION
Never install more than one optional wall control per unit.
WARNING
To avoid risk of electrical shocks, never install another wire in the same
electrical box than the one for the optional wall control.
0
!
WARNING
Always disconnect the unit before making any connections. Failure in
disconnecting power could result in electrical shock or damage of the wall
control or electronic module inside the unit.
0
!
- 29 -
5. CONTROLS (CONT’D)
1
2
BLACK
wire
YELLOW
wire
GREEN
wire
RED
wire
WARNING
Make sure that the wires don’t short circuit between themselves or by
touching any other components on the wall control.
!
