LOADING THE CONCENTRATE

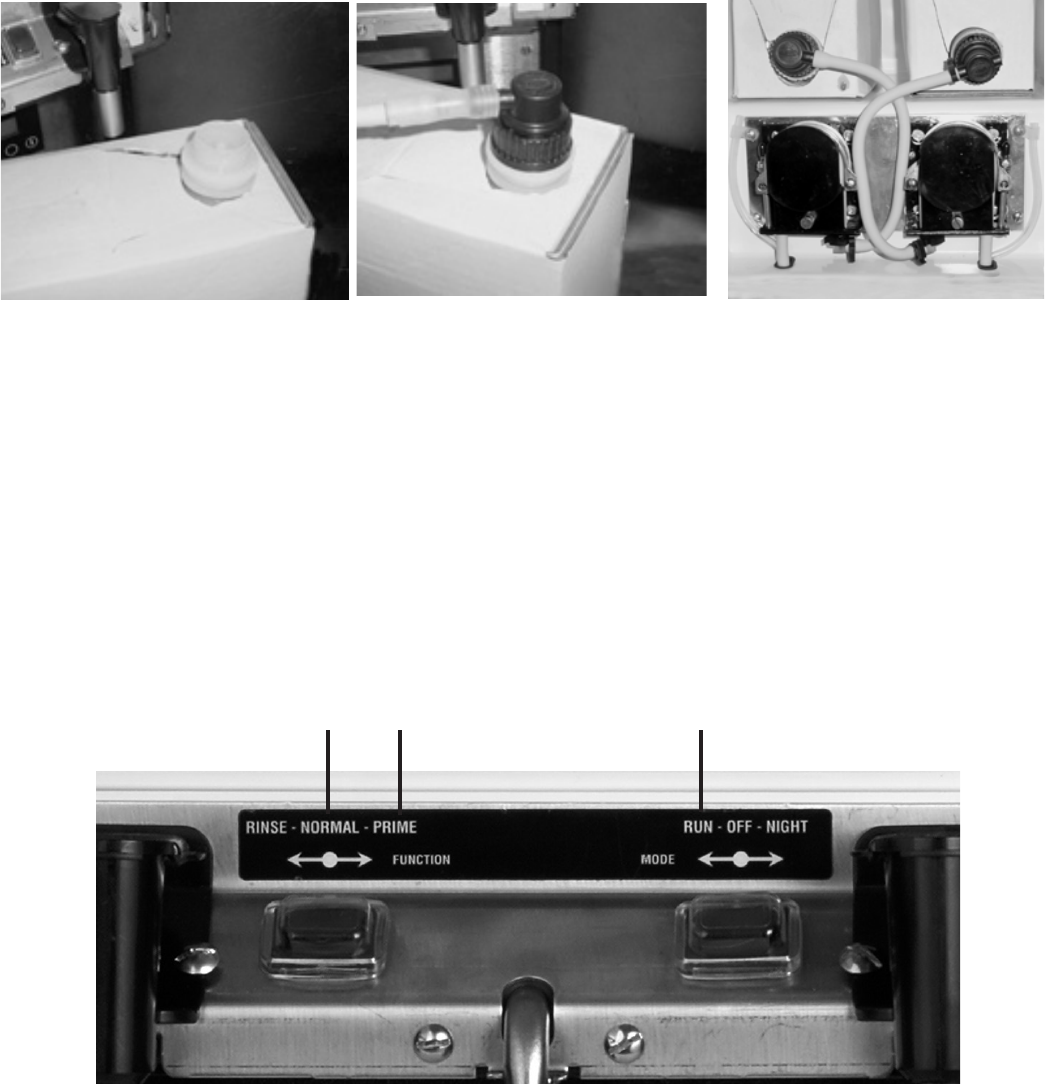

1. Thoroughly mix concentrate by vigorously shaking the product Bag-In-Box (BIB).
2. Pull the BIB connector through the hole provided in the box and place it on the drip tray with the connector
facing up. (See Fig. 1)
3. Open the dispenser door and locate the appropriate left or right BIB Adapter fitting.
4. Pull the Adapter fitting down and connect it to the BIB. (See Fig. 2)
5. Place the BIB upright in the machine, rotating it into position with the connector facing forward.
6. Rotate the BIB Adapter to avoid sharp bends in the tubing and allow it to be routed between the two
pumps.
Refer to the Tube Installation Decal on the door for proper routing. (See Fig. 3)
7. Close the cabinet door.
34766 042304
PRIMING THE CONCENTRATE LINES
1. Open the dispenser door.
2. Load concentrate per instructions in the section titled Loading the Concentrate.
3. Select Prime on the Function Selector Switch and Run on the Mode Selector Switch.
4. Close the dispenser door.
5. Place a container under the appropriate dispense tip.
6. Activate the appropriate dispenser until concentrate flows from the dispense nozzle. Priming may take 5 to
10 seconds.
7. Open the dispenser door, select Normal on the Function Selector Switch, and then close door.
Note: Concentrate may continue to drip out of dispense tip. The user may wish to run a Rinse Cycle (refer to
Rinsing) after Priming the dispenser to clean out the remaining concentrate.
Fig. 1
Fig. 2 Fig. 3
