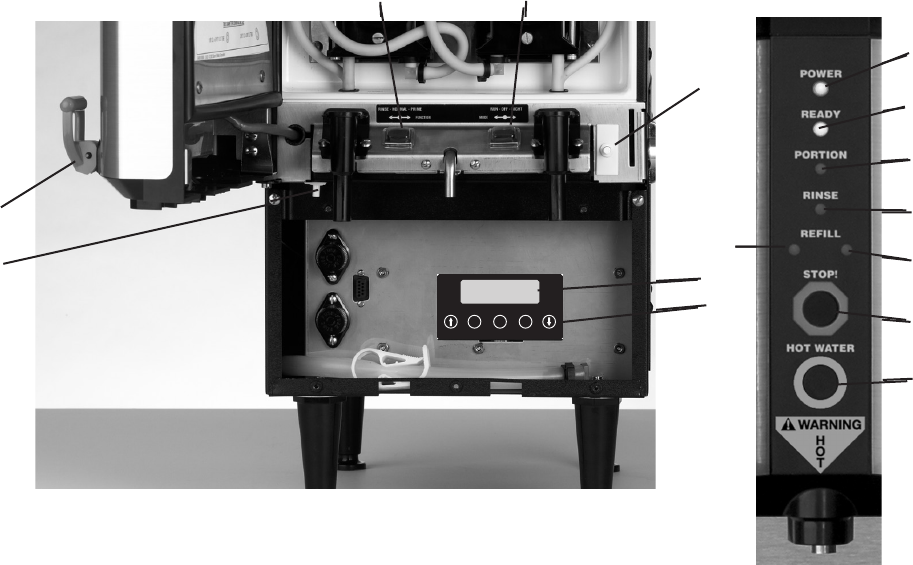

OPERATING CONTROLS AND INTERFACE
1a. Dispense Handles: Pull and Hold to dispense product.
1b. Dispense Switches: Push and Release to dispense product for Portion Control Models.
2. Stop Switch: Momentary switch stops all dispense functions.
3a. Hot Water Switch: Push and Hold switch to dispense hot water from the center dispense tip.
3b. Push and Release switch for Portion Control Models.
4. Alternate Portion Control Switch: Momentarily pushed to select the Alternate Portion Control Volume #2.
5. Function Selector Switch: Allows the user to set the dispenser into different dispensing modes.
a. Rinse: Dispenses hot water only- Flushes the mix chamber and dispense tip.
b. Prime: Dispenses concentrates only – Primes the concentrate pump.
c. Normal: Normal dispense mode - Dispenses mixed product (concentrate and water).
6. Mode Selector Switch: Allows the user to set the dispenser into different operating modes.
a. Run: Normal operating position.
b. Off: Turns off all functions including tank heater and chiller.
WARNING - The OFF Mode does not remove AC power from the dispenser. Disconnect power source before
servicing the dispenser
c. Night: Anti-pilfering mode that disables dispensing, but keeps the tank heater and chiller (if applicable)
operational.
7. Door Interlock Switch: Unit will not dispense product if the door is open.
8. Power LED: Red - illuminates when AC power is applied to dispenser.
9. Ready LED: Green - illuminates when the water is at the preset ready temperature.
10. Portion LED: Yellow - illuminates when the portion dispense option has been selected, (5 second delay).
11. Rinse LED: Yellow - illuminates when the optional preset rinse alarm time has elapsed.
12. Left Refill LED: Yellow - illuminates when the Left Concentrate BIB needs replaced.
13. Right Refill LED: Yellow - illuminates when the Right Concentrate BIB needs replaced.
14. Programming Keypad: Used in conjunction with the LCD display to program and calibrate the dispenser to
customer specific requirements. (Located behind the splash guard panel)
15. LCD Display: Displays programming menus and fault messages. (Located behind the splash guard panel)
34766 120105
BUNN ICED COFFEE
AMBIENT UNIT
8
9
10
11
13
2
3
7
12
15
14
1
4
5 6
