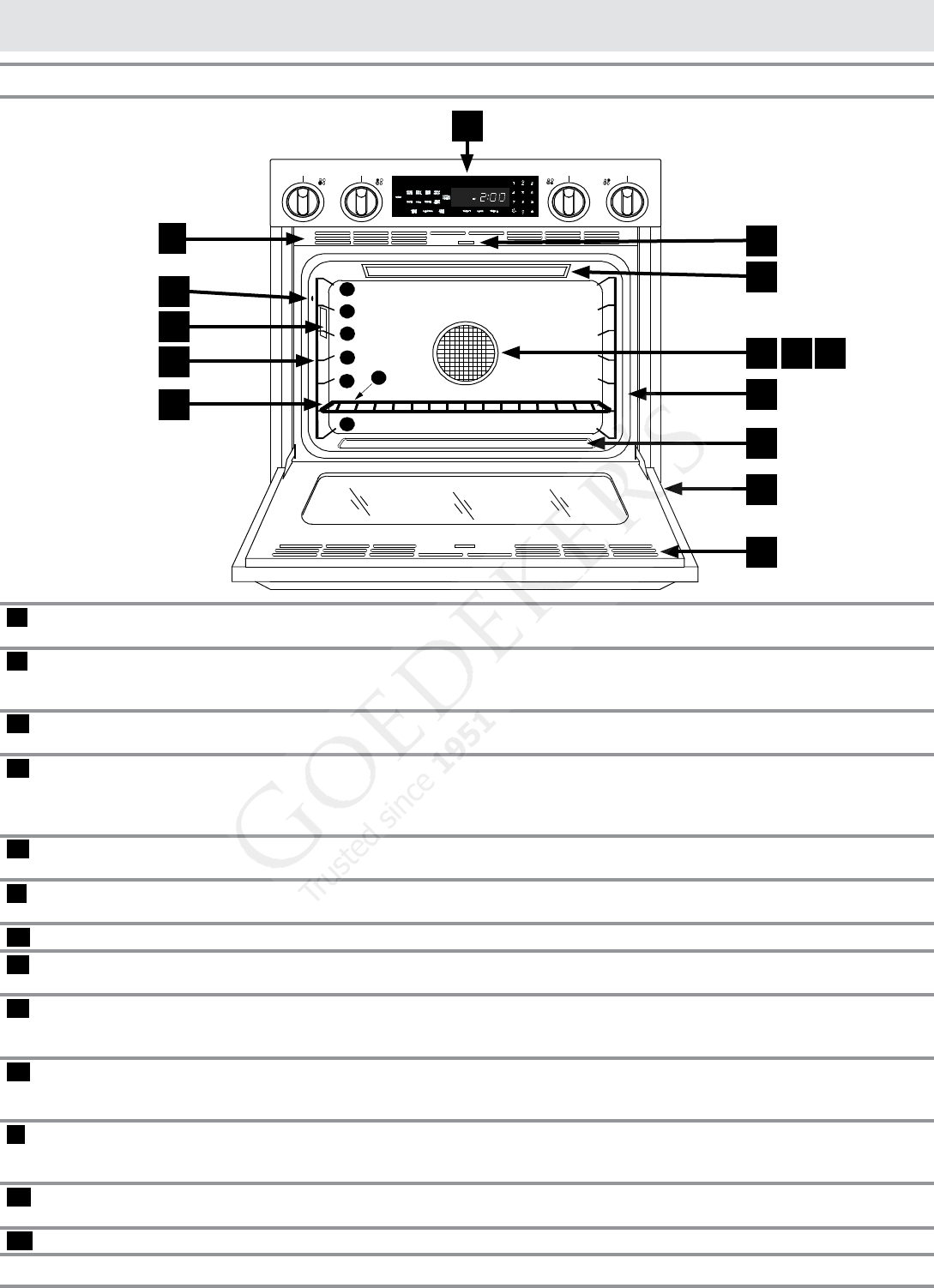

Parts of the Oven
Getting to Know Your Range
(below oven floor)
(at bottom of door)
A
Control panel The control panel consists of keys and a display. Use the control panel to
control all the oven’s features (sometimes called modes).
B
Self clean latch The self clean latch automatically locks the oven door during the self clean
cycle. The door latches for your safety. There are very high temperatures
inside the oven during the self clean cycle.
C
Broil element The broil element is located on the ceiling of the oven chamber. It is the
source of top heat.
D
Convection filter The convection filter covers the convection fan. It helps prevent the
transfer of taste from one food to another when you are cooking a whole
meal. It also keeps the oven cleaner and covers the moving fan blades for
safety purposes.
E
Convection element The convection element heats the air that is circulated through the oven
chamber by the convection fan during the convection cooking process.
F
Convection fan The convection fan circulates heated air through the oven chamber during
the convection cooking process. The convection filter covers it.
G
Door gasket The door gasket prevents heat from escaping when the door is closed.
H
Bake element Hidden below the floor of the oven chamber is the bake element. It is the
source of bottom heat.
J
Air intake/Exhaust slots The range draws air in through the intake slots to cool its internal parts. The
air comes out through the exhaust slot at the bottom of the oven. Do not
block or cover the air intake or exhaust slots.
K
Meat probe connector When you use the meat probe, insert the skewer into the meat and plug the
other end into this connector. See the Using the Meat Probe section on
page 17 for proper operation.
L
Oven light There is a light inside the oven chamber so that you can easily see the food
inside. Press the light key on the control panel to turn it on. The bulb is
120 Volt, 20 Watt, halogen.
M
Rack supports There are seven rack positions inside the oven chamber. The rack positions
are numbered from the bottom counting up.
NN
Oven rack Your oven comes with two GlideRack™ oven racks.
