Electrical Connection
WARNINGS
To avoid electrical shock or fire hazard, make sure
the power supply at the fuse or junction box is turned
off before proceeding with final installation.
Improper connection of the hood electrical wiring may
create an electric shock or fire hazard and may result
in damage to the hoods electrical system.
Do not ground the hood to the neutral (white) power
supply wire. Connect the hood ground wire to a
separate, properly grounded wire installed by a
licensed electrician.
•
•
•
Connect the power supply wires to the wires coming
out of the top of the hood junction box on the blower
assembly:
Connect the white wire from the hood to the neutral
(white) power supply wire.
Connect the black wire from the hood to the hot (black)
power supply wire.
Connect the green and yellow wire from the hood to
the house ground (green) wire from the junction box.
1.
2.
3.
INSTALLATION INSTRUCTIONS
Install the Chimney
IMPORTANT: Be careful not to pinch the electrical wires
while installing the chimney.
Remove the protective plastic covering from both
pieces of the chimney assembly. Do not remove the
protective tape strips from the inside of the chimney.
They protect the telescoping pieces from scratching
during installation.
Carefully slide both sections together so that only the
vents on the top section show.
Hold the chimney vertically with the vents up, close to
the blower assembly.
Connect the control panel cable on the chimney to the
cable on the front of the blower assembly.
1.
2.
3.
4.

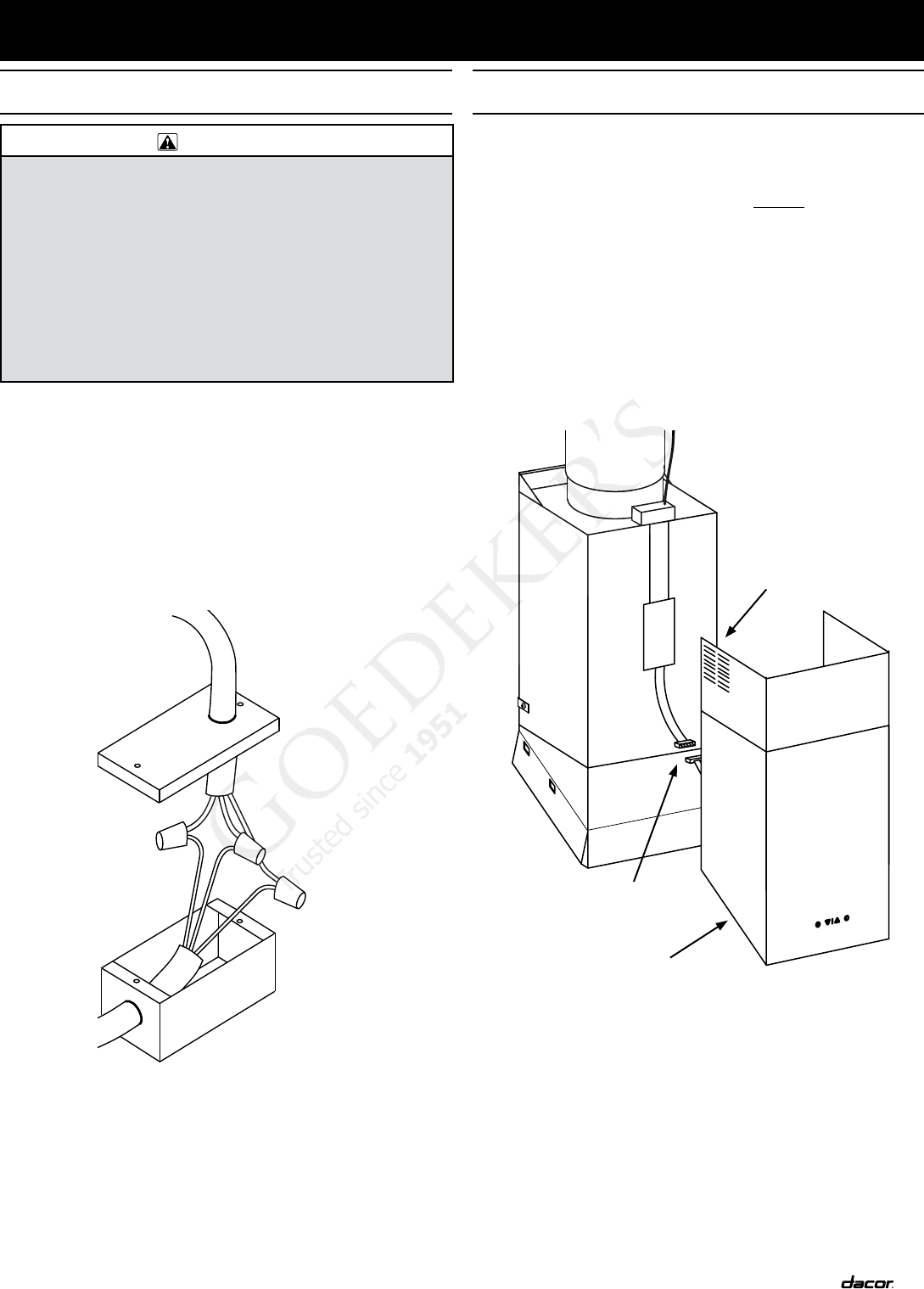

BLACK TO BLACK
YELLOW/GREEN
T
O GREEN
WHITE TO WHITE
VENT
CHIMNEY
CONNECT
CABLE
