18

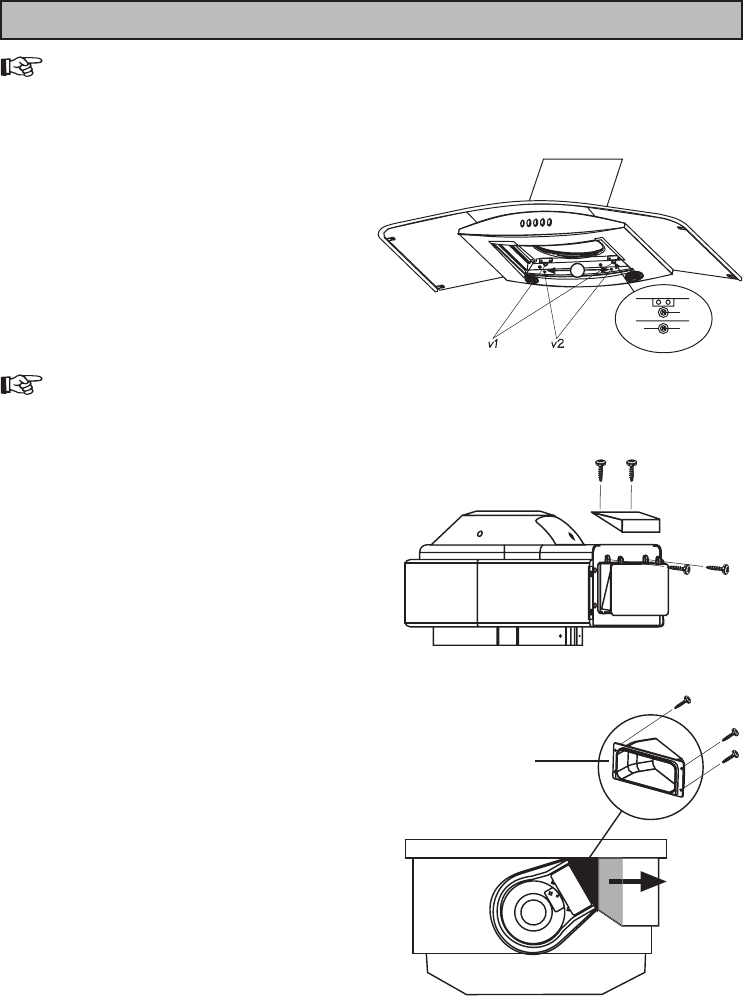

Final fixing and adjustment of the
hood:
Two adjustable connectors are provided at the rear of
the hood.
(a) Turn the screws (V1), until the screws (V2) align
with the screw holes (F2).
(b) Adjust the vertical and horizontal alignment using
screws (V2).
(c) Turn the screw (V1) to secure the hood to the
wall.
(d) Insert the plastic grommets provided into the
screw holes (F2).
(e) Tighten the screws fixing the canopy (C) to the
chimney (A).
Ducting and recirculation fitting:
Ducting
1. When ducting to the outside the charcoal filter is
not required and must be removed and destroyed.
2. When ducting from the rear outlet using 125mm
round ducting it will be necessary to fit the 120-
125mm ducting collar onto the spigot (F) before
connecting the ducting, to ensure an air tight fit.
This appliance must not be connected to ducting
with a smaller diameter than 120mm.
3. When ducted from the left or right hand side, it
will be necessary to fit the 60x204mm adapter
(W) for use with flat channel ducting to the spigot
(R).
Recirculation
1. The hood is supplied in the recirculation mode,
with the charcoal filter and the recirculation grille
(G) fitted (over the outlet in the top of the fan
assembly) ready for use.
2. The charcoal filter will have to be removed during
installation to allow for electrical connection.
INSTALLING INSTRUCTIONS
V1
FV2
S07_21
F
S07_22
R
S07_19
