SECTION 5 – APPENDIX
Internal Connections

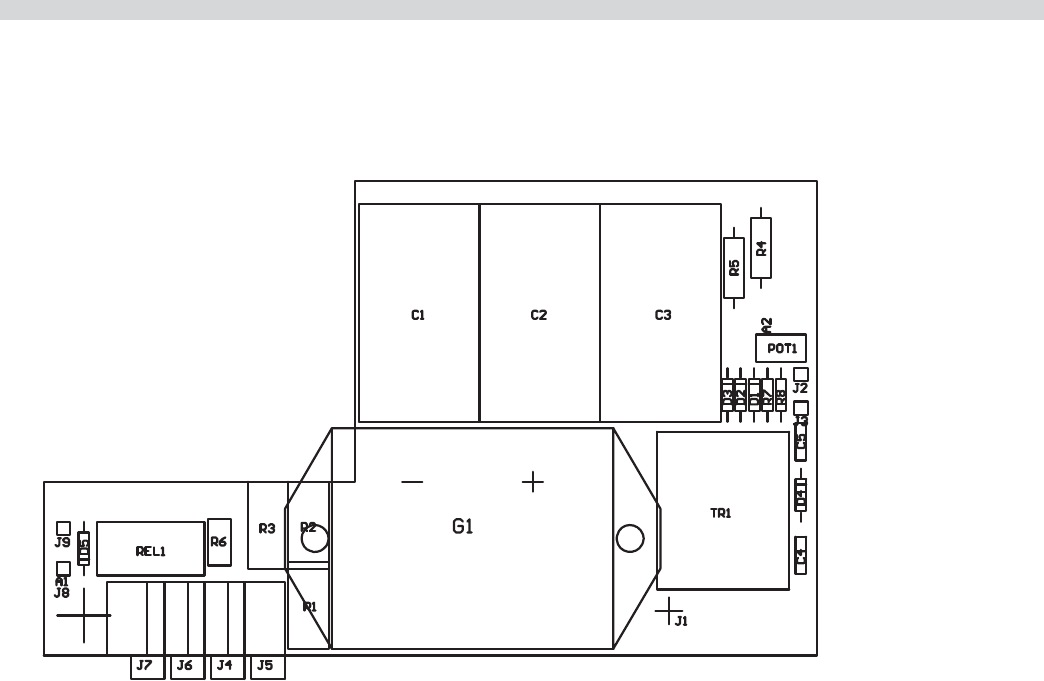

Recti er Circuit Board C
View solder side
poti for pan detector
9 10 11 12
230V Venti
