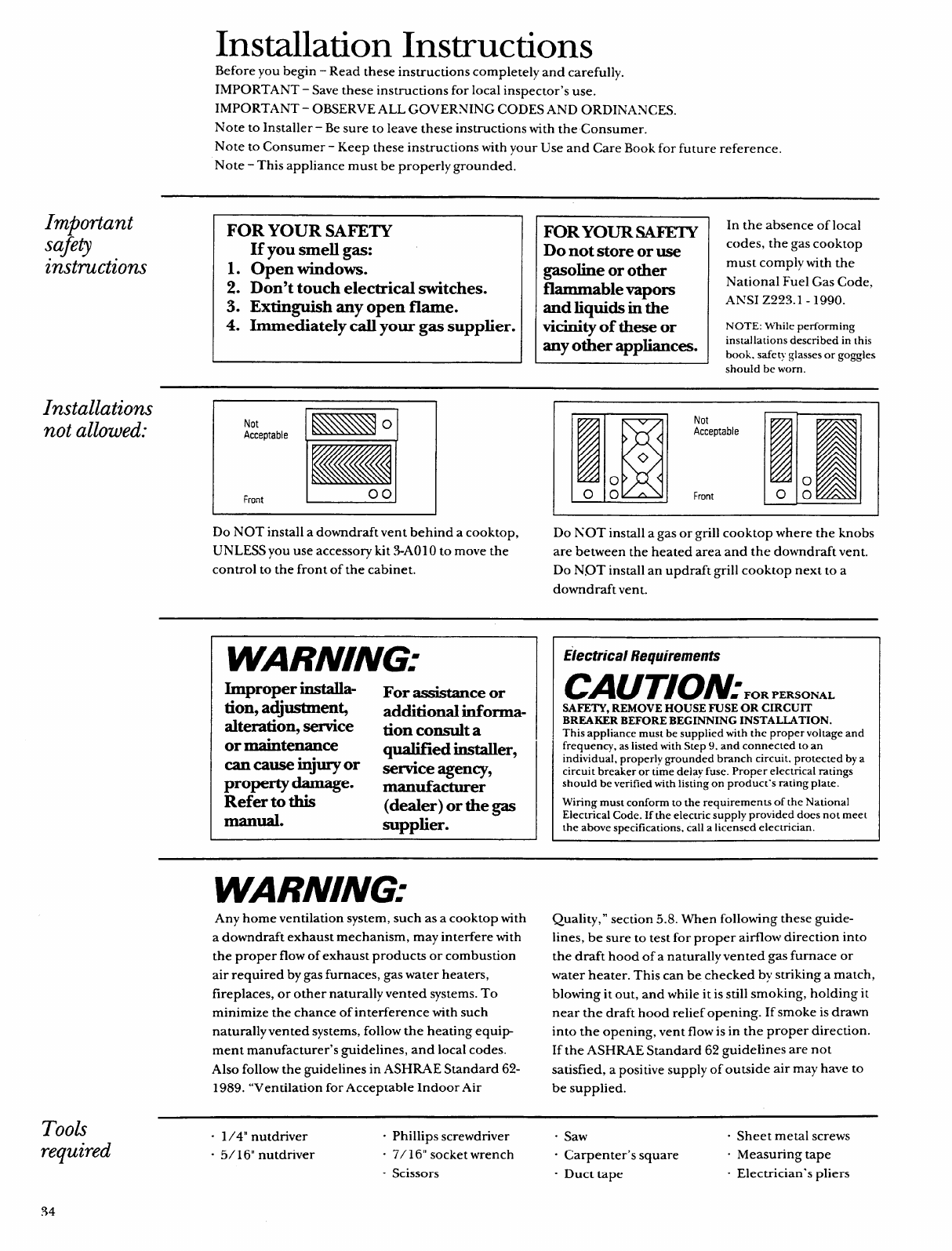

Installation Instructions
Important
safety
instructions
Installations
not allowed:
Took
required
Before you begin – Read these instructions completely and carefully.
IMPORTANT – Save these instructions for local inspector’s use.
IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES.
A1ote to Installer -Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions with your Use and Care Book for future reference.
Note - This appliance must be properly grounded.
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don’t touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
FOR YOUR SAFETY
Do not store or use
gasoline or other
flammable vapors
and liquids in the
vich+ of these or
any other appliances.
In the absence of local
codes, the gas cooktop
must comply with the
National Fuel Gas Code.
ANSI Z223.1 -1990.
NOTE: While performing
installations described in this
book. safety glasses or goggles
should be worn.
Not
El
o
Acceptable
Front
00
Do NOT install a downdraft vent behind a cooktop,
UNLESS you use accessory kit .3-AOIOto move the
control to the front of the cabinet.
Do NOT install a gas or grill cooktop where the knobs
are between the heated area and the downdraft vent.
Do N,OT install an updraft grill cooktop next to a
downdraft vent.
WARNING:
Improper install-
ation,adjustmen$
alte=tion, service
or maintenance
can cause injury or
property damage.
Refer to this
manual.
For assistance or
additional informa-
tion consult a
qualified installer,
service agenq,
manufacturer
(dealer) or the gas
supplier.
Electrical Requirements
CAUTION:,.,~..s....
SAFETY,REMOVEHOUSEFUSEORCIRCUIT
BREAKERBEFOREBEGINNINGINSTALLATION.
This appliance must be supplied with the proper voltage and
frequency, as listed with Step 9, and connected to an
individual, properly grounded branch circuit, protected by a
circuit breaker or time delay fuse. Proper electrical ratings
should be verified with listing on product’s rating plate.
Wiring must conform to the requirements of the National
Electrical Code. If the electric supply provided does not meet
the above specifications, call a licensed electrician.
WARNING:
Any home ventilation system, such as a cooktop with
a downdraft exhaust mechanism, may interfere with
the proper flow of exhaust products or combustion
air required by gas furnaces, gas water heaters,
fireplaces, or other naturally vented systems. To
minimize the chance of interference with such
naturally vented systems, follow the heating equip
ment manufacturer’s guidelines, and local codes.
Also follow the guidelines in ASHRAE Standard 62-
1989. “Ventilation for Acceptable Indoor Air
Quality,” section 5.8. When following these guide-
lines, be sure
to test for proper airflow direction into
the draft hood of a naturally vented gas furnace or
water heater. This can be checked by striking a match,
blowing it out, and while it is still smoking, holding
it
near the draft hood relief opening. If smoke is drawn
into the opening, vent flow is in the proper direction.
If the ASHILAE Standard 62 guidelines are not
satisfied, a positive supply of outside air may have to
be supplied.
“ 1/4” nutdriver
“ Phillips screwdriver “ Saw
“ Sheet metal screws
“ 5/16” nutdriver
“ 7/ 16“ socket wrench
“ Carpenter’s square
“ Measuring tape
“ Scissors “ Duct tape
“ Electrician’s pliers
