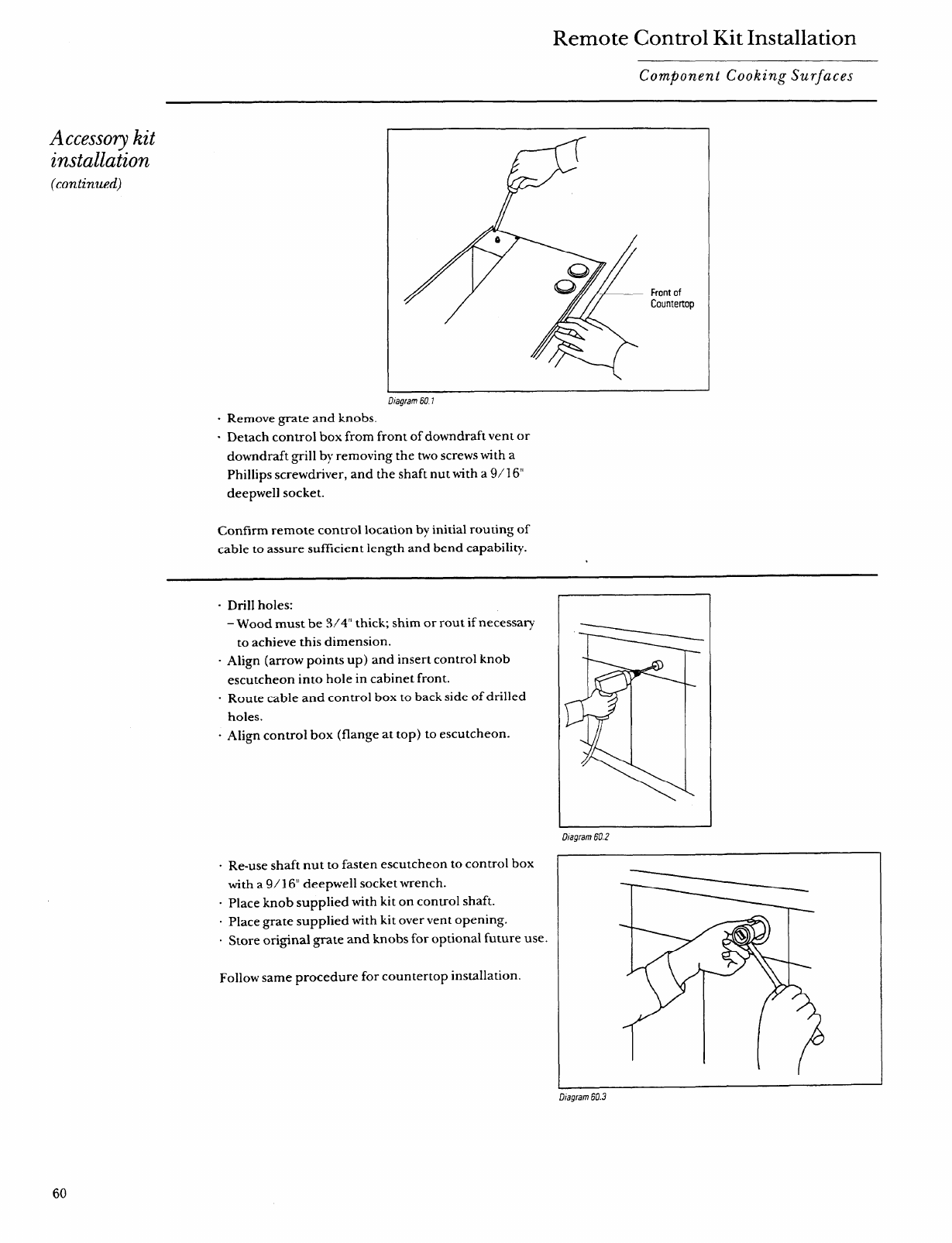

Remote Control Kit Installation
Component Cooking Surfaces
Accessorykit
installation
(continued)
D/agram 601
“
Remove grate and knobs.
“ Detach control box from front of downdraft vent or
downdraft grill by removing the two screws with a
Phillips screwdriver, and the shaft nut with a 9/ 16“
deepwell socket.
Front of
Countertop
Confirm remote control location by initial routing of
cable to assure sufficient length and bend capability.
- Drill holes:
– Wood must be 3/4” thick; shim or rout if necessary
to achieve this dimension.
“ Align (arrow points up) and insert control knob
escutcheon into hole in cabinet front.
- Route cable and control box to back side of drilled
holes.
“ Align control box (flange at top) to escutcheon.
“ Re-use shaft nut to fasten escutcheon to control box
with a 9/16“ deepwell socket wrench.
. Place knob supplied with kit on control shaft.
. Place grate supplied with kit over vent opening.
. Store original grate and knobs for optional future use.
Follow same procedure for countertop installation.
Dtagram 60.2
1
J
Dtagram 60.3
60
