– 5 –
In Canada:
1. Local codes.
2. CSA B149.1 Natural Gas and Propane Installation Code.
3. STANDARD C22.1 Canadian Electric Code (latest edition).
4. CSA C22.1 Canadian Electric Code (latest edition).
5. CSA C22.2 No. 3 Canadian Electric Code (latest edition).
6. CSA Standard C22.2 No. 3
Electrical Features of Fuel Burning Equipment
(latest edition).
The above are available from the Canadian Standard Association, 5060 Spectrum Way, Suite 100,
Mississauga, Ontario, Canada L4W 5N6.
INSTALLING BASIC OVEN
The basic oven must be installed on legs or be mounted on a modular stand. Installations on concrete
bases or other supports restricting air circulation underneath the oven is not advisable and may void
the warranty.
Ovens Mounted on Casters
Ovens mounted on casters must use a flexible connector (not
supplied by Hobart) that complies with the Standard for Connectors
for Movable Gas Appliances, ANSI Z21.69 • CSA 6.16 and a
quick-disconnect device that complies with the Standard for
Quick-Disconnect Devices for Use With Gas Fuel, ANSI-Z21.41
• CSA 6.9. In addition, adequate means must be provided to limit
movement of the appliance without depending on the connector
and the quick-disconnect device or its associated piping to limit
appliance movement. Attach the restraining device at the rear of
the oven as shown in Fig. 1.
Remove two screws from the rear of the oven and install the tie-
down strap shipped with the casters using these screws (Fig. 1).
Attach the gas line strain relief to the tie-down strap at the rear of
the oven (Fig. 1).
If disconnection of the restraint is necessary, turn off the gas supply before disconnection. Reconnect
this restraint prior to turning the gas supply on and returning the oven to its installation position.
Separate instructions for installing casters to the oven are included with the casters.
Note: If the oven is installed on casters and is moved for any reason, it is recommended that the oven
be releveled front to back and side to side.

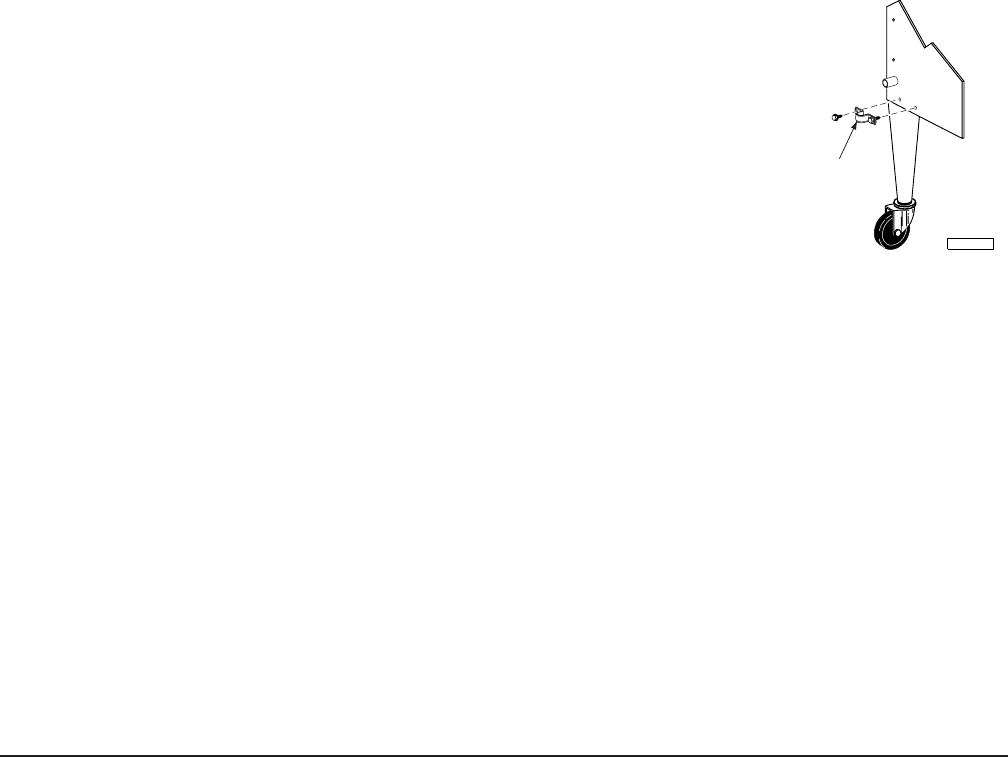

Fig. 1
CONNECT
GAS LINE
STRAIN RELIEF
HERE
PL-53563
