CLEANING
This machine must be cleaned at least once each working day.
1. Turn the On-Off switch to the off position
(Figs. 2 and 3 on page 10).
2. Open the door and remove the wash
arms and the strainer assembly (Fig.5).
3. To remove the lower wash arm, remove
the retaining screw (Fig. 5), grasp the
wash arm at the center (Fig. 6) and pull
it up and out of the machine.
4. Lift strainer assembly out of sump, over
wash arm shaft.
5. To remove the upper wash arm, hold
the wash arm in place while removing
the retaining screw (Fig. 7) and then
remove the upper wash arm.
6. Thoroughly clean items in a sink.
7. With a damp cloth, wipe the interior
and exterior of the machine. When
cleaning the inside of the door, be sure
to wipe the lip at the bottom of the door.
8. Reinstall the strainer and wash arms
and tighten the retaining screw on both
the upper and lower wash arms.
9. Leave the door ajar overnight to allow
the interior to air out and dry.

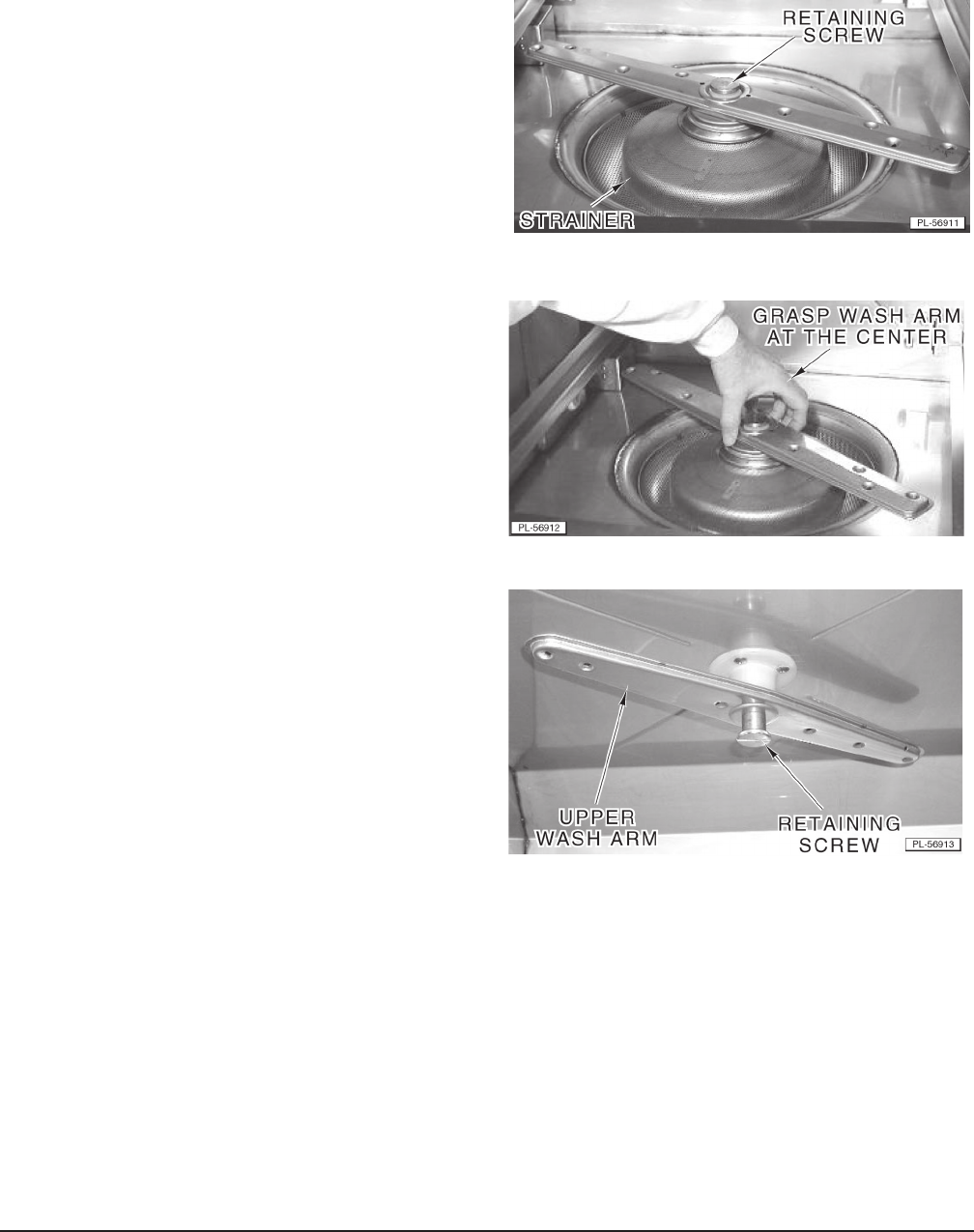

Fig. 5
Fig. 6
Fig. 7
