LOCATION
Prior to installation, test the electrical service to make sure that it agrees with the specifications on the
machine data plate, located on the top of the door.
Place the machine in its operating location. Before any connections are made, the machine must be
level. Use the tank seam at the top of the sump inside the tank as a reference. To level the machine,
pour enough water in the tank to reach the seam and then thread the adjustable feet in or out until the
water level is even with the seam.
The lower front panel must be removed to accommodate plumbing and electrical connections.
Remove the two screws that secure the lower front panel and the kick panel. Remove both panels.
Replace these panels after installation.
Machines without side and top panels should be anchored to the counter under which they are installed
by assembling two screws (not supplied) through the holes in the top of the tank.
The machine must be cleaned after installation and before being put into service. Refer to the
OPERATION section for detailed instructions.

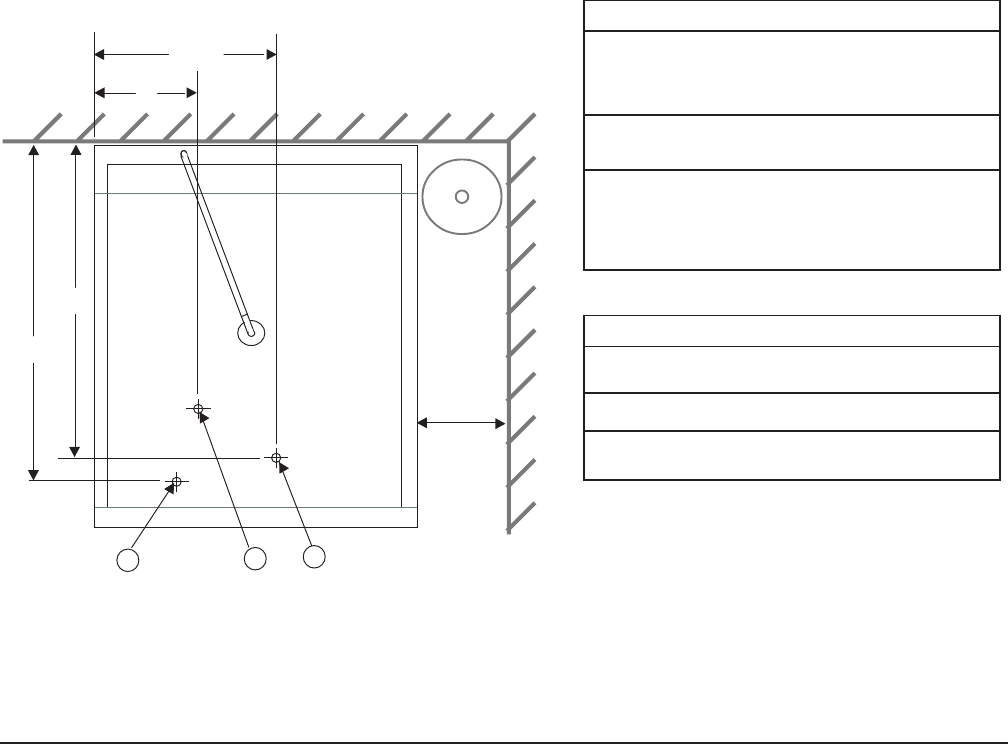

DETAILS AND DIMENSIONS
WALL
9" Min.
Req'd
for
SR24C
Only
20
1
/2"
18
3
/4"
14
3
/8"
P1
P2
E1
7"
INTERIOR DIMENSIONS
1. Maximum inside height from inside rack to
top wash arm is 16
5
/8".
2. Width is 22
3
/16".
3. Front to rear is 21
1
/2" with door closed.
NOTE: Certain materials, including silver plate,
aluminum and pewter are attacked by sodium
hypochlorite (bleach). Refer to DOs AND
DON'Ts FOR YOUR NEW HOBART
WAREWASHER.
SR24C Net Weight of Machine: 135 lbs.
SR24C Domestic Shipping Weight: 155 lbs.
SR24H Net Weight of Machine: 146 lbs.
SR24H Domestic Shipping Weight: 166 lbs.
LEGEND
P1 Single fill and rinse pipe connection,
3
/4"
female garden hose fitting on 6' long hose
supplied with the machine; 110°F water min.
for SR24H; 120°F water min. for SR24C.
P2 Drain pipe connection,
3
/4" MPT fitting with
10' hose supplied with the machine.
E1 Location of electrical connection, SR24H only:
3
/4" elec. connector (1
1
/8" dia. hole), 4" AFF.
Location of electrical connection, SR24C only:
cord and plug supplied.
