Hobart SR24H Dishwasher User Manual



– 5 –
Minimum Maximum
Machine Type & Rated Supply CKT Overcurrent
Specification AMPS Conductor Protective
Ampacity Device
SR24C 120/60/1 9 15 15
SR24H 120/240 (3W)/60/1 37.6 50 50 *
or 120/208 (3W)/60/1 42.0 50 50 *
* These are 3-wire systems that require (3) #8 AWG copper
wires (90°C) including a current carrying neutral. In addition,
a fourth wire must be provided for machine ground. Do not
connect these machines to a 120 VAC circuit.

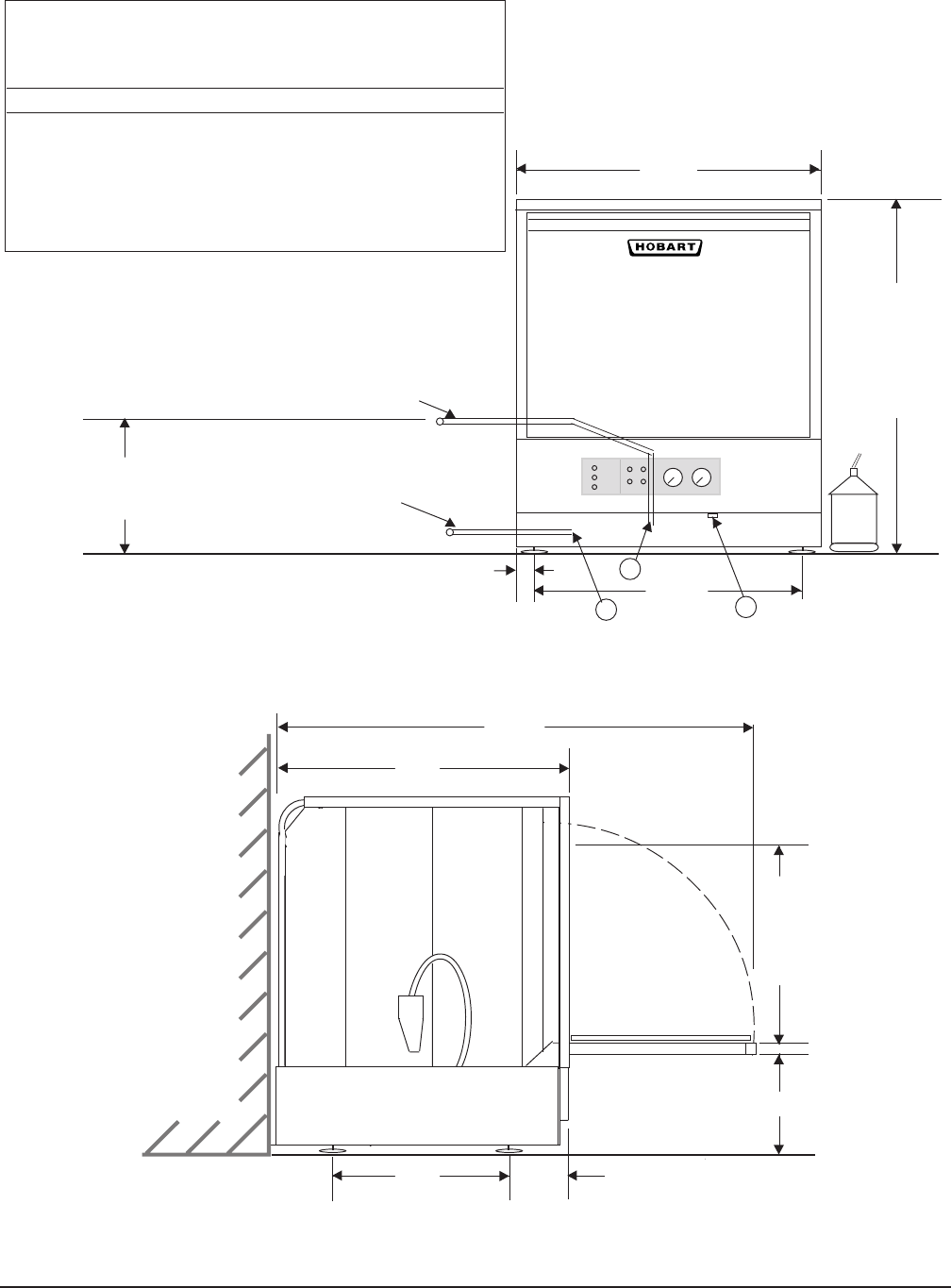

15"
16
5
/8"
Max.
Load
Height
4
1
/8"
24"
42
1
/2"
WALL
14"
NOTE: If drain hose is looped above a sink, the
loop must not exceed 38" above finished floor.
Recommended rough-in drain
location 1
1
/2" trade size pipe
minimum, reduced down to
3
/4"
FPT connector (by customer).
Recommended water service rough-in,
1
/2" trade size pipe minimum, with
shut-off valve and
3
/4" male garden
hose fitting (by customer).
3
/4"
22
3
/8"
E1
Floor Line
Overall
Height
Without
Top Panel
34
5
/8" min.
35
5
/8" max.
23
7
/8"
P1
Recommended
17" or less
P2
