2. Built-In Installation Site
CAUTION
1. Do not let the weight of the counter rest on the icemaker.
2. Do not install the icemaker in a corner where the door will interfere with other
equipment or where the icemaker cannot be pulled out for service.

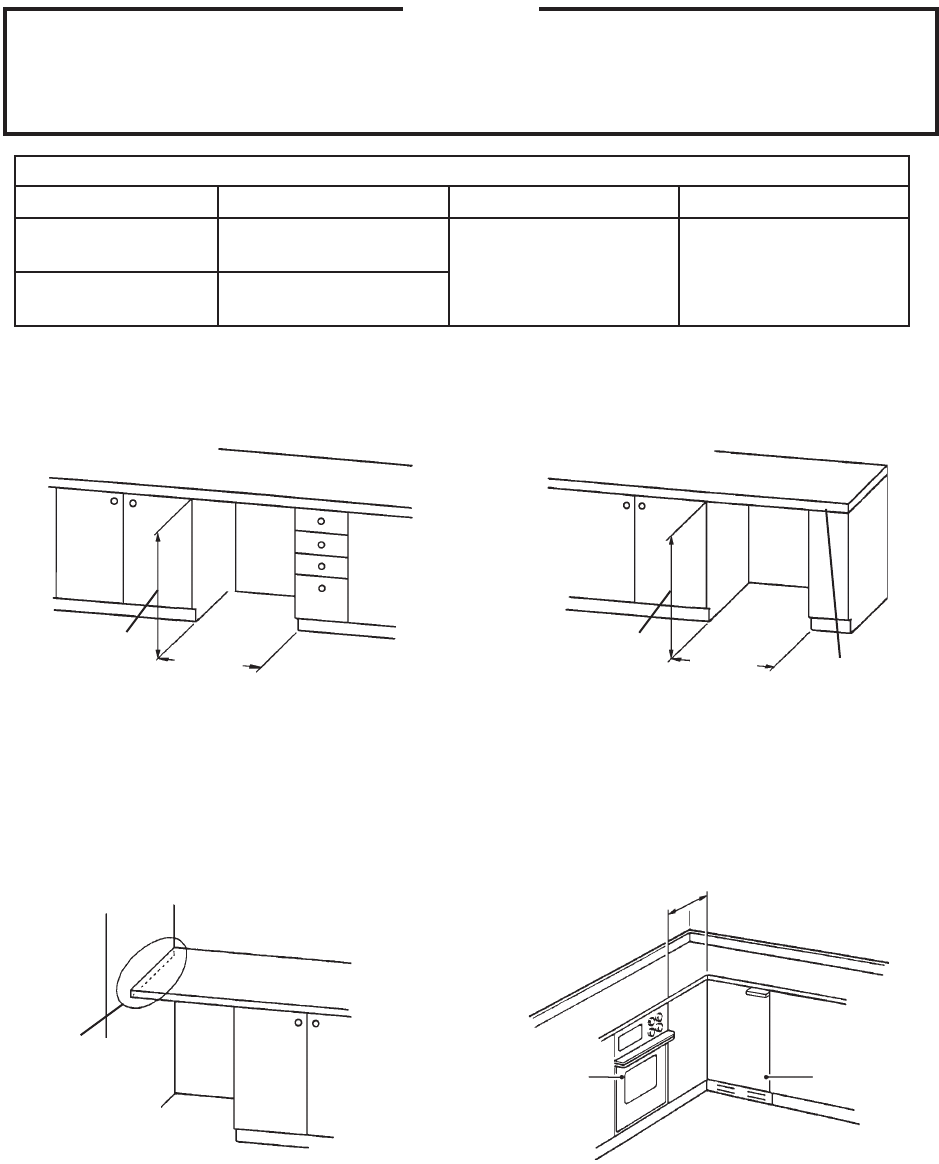

Installation Space
Model Height Width Depth
C-100BAF
C-100BAF-DS
34"(864mm)minimum
15"(381mm)minimum 24"(610mm)minimum
C-100BAF-AD
C-100BAF-ADDS
32"(814mm)minimum
C-100BAF
C-100BAF-DS
Min.34"
(864 mm)
C-100BAF-AD
C-100BAF-ADDS
Min.32"
(814 mm)
Min.15"
(381 mm)
Between Two Cabinets Between a Cabinet and
the End of a Counter
Support: Do not
let the weight of
the counter rest
on the icemaker
Min.23"
(584 mm)
Oven
Icemaker
Between a Cabinet and
a Wall or Tall Cabinet
In a Corner
Secure: Do not
let the weight of
the counter rest
on the icemaker
Min.15"
(381 mm)
C-100BAF
C-100BAF-DS
Min.34"
(864 mm)
C-100BAF-AD
C-100BAF-ADDS
Min.32"
(814 mm)
