3) While maintaining a hold on the door, remove the hinge stop pin from hinge (B). Pull out
the bottom of the door slightly, then gently remove the door from hinge (A). See Fig. 31.
4) Remove the 2 screws securing the top panel, then lift it off.
5) Remove all ice from the storage bin.
6) Remove the slope from the storage bin by carefully bending it in the center and
releasing it from the 2 slope shafts.
7) Remove the scoop. Remove the 2 thumbscrews securing the scoop holder, then remove
it.
8) Remove the screws securing the upper rear panel, then remove it.
9) Remove the clamp securing the drain plug, then lower the drain hose into a container.
See Fig. 32. Remove the drain plug to drain the water from the reservoir and evaporator
assembly.
10) After all of the water has drained, replace the drain plug in its correct position.
11) Remove the reservoir cover. Pour the cleaning solution into the reservoir until the
solution starts to ow through the overow hose. Replace the reservoir cover in its
correct position.
Note: If there is excess scale on the extruding head, ll the reservoir as described
above, then use a clamp on the reservoir hose between the reservoir and
evaporator assembly to block ow. Remove the thumbscrews securing the spout,
then remove the spout. Pour additional cleaning solution over the extruding head
until the evaporator assembly is completely full.

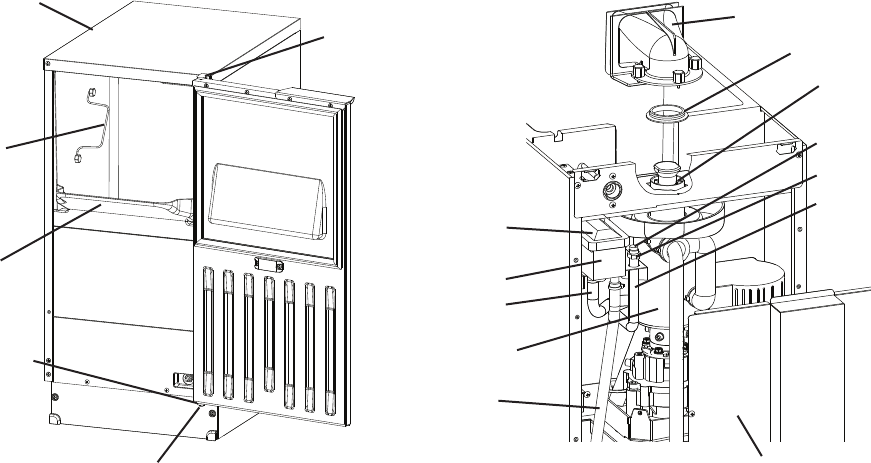

Fig. 31
Fig. 32
Slope
Scoop
Holder
Hinge (A)
Hinge (B)
Hinge Stop Pin
Top Panel
Spout
Extruding
Head
Reservoir
Cover
Reservoir
Reservoir
Hose
Overow
Hose
Evaporator
Assembly
Packing
Upper Rear Panel
Clamp
Drain Plug
Drain Hose
