* Drain lines should not be piped directly
to the sewer system. An air gap of a
minimum of 2 vertical inches (5 cm)
should be between the end of the drain
pipes from the icemaker and the floor
drain.
* This icemaker should be installed in
accordance with applicable national,
state and local regulations.
* A plumbing permit and services of a
licensed plumber may be required in
some areas.

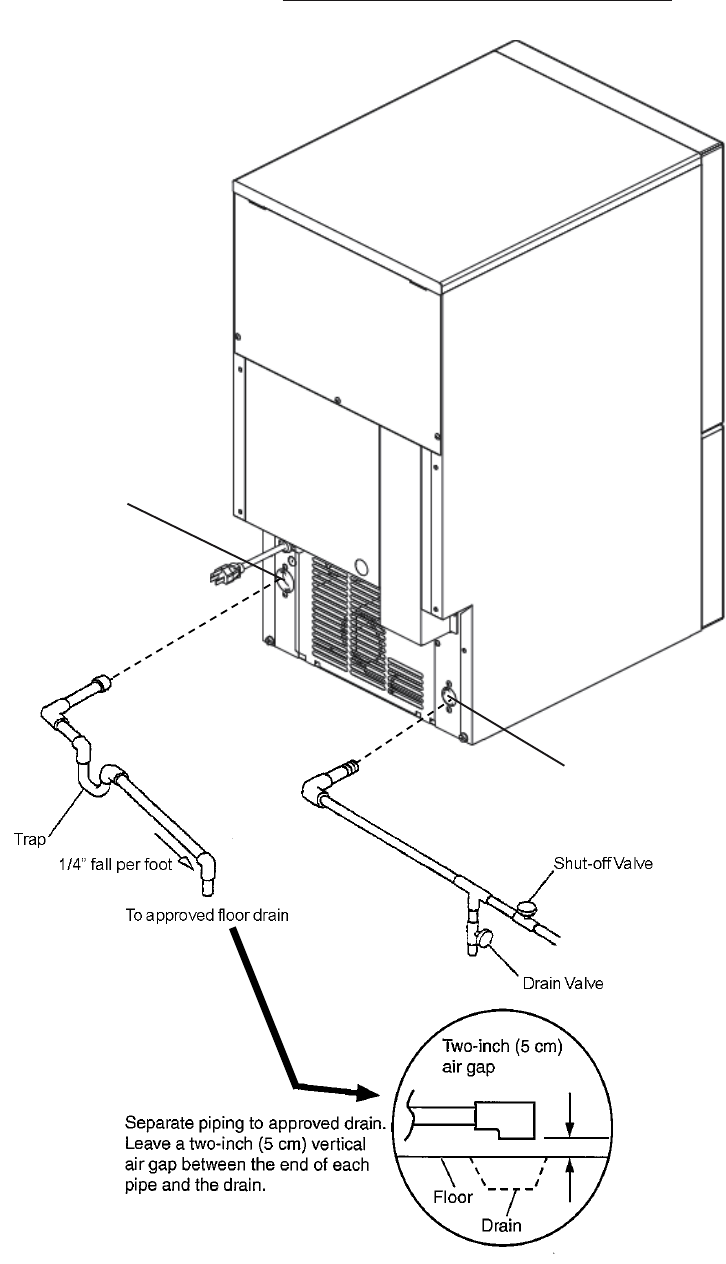

Fig. 4
Water Supply Inlet
1/2” FPT
Drain Outlet
3/4” FPT
KM-61BAH, KM-101BAH, KM-151BAH
