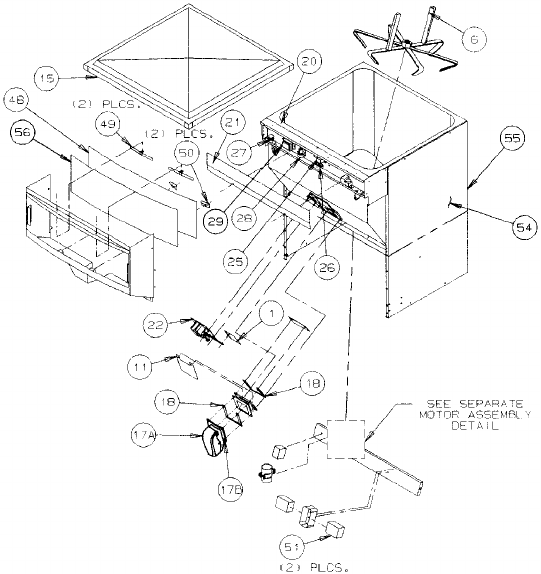

FIGURE 6. EXPLODED VIEW - UPPER SECTION AND PARTS LIST
Item
No. Part No. Name
1 21491 Gate Slide
6 28075 Agitator
11 52239 Foam Shield
15 52154 Lid - Gray
17 53015 Ice Chute (Clear) Back Section
53016 Ice Chute Cover
18 51891 Gate Gasket
20 90295 Cleaning label
21 91680 Wiring Diagram (Pull Solenoid)
91699 Wiring Diagram (Rotary Solenoid See Figure NO TAG)
22 31093 Gate Solenoid Assembly (See Figure NO TAG)
32954 Rotary Gate Solenoid (See Figure NO TAG
25 31763 Agitation Timer
26 31406 Fuse, Gate Solenoid
27 31620 Fluorescent Starter
28 31375 Relay Mercury
29 31521 Ballast
48 52180 Panel, Plexiglass DB200
52171 DB275
49 28235 Assembly, Retainer
50 28313 Hold Down, Graphics
51 32682 Transformer Ass’y (See Note)
54 91888 Decal,, Side Coke DB200
91697 DB275
55 91889 Decal, Rear Coke DB200
56 91691 Graphics, Coca-Cola DB200
91683 DB275
NOTE: For units manufactured before October 15, 1993 order part number 33087 transformer kit. This
includes a 32682 transformer and two (2) 33084 harnesses.
