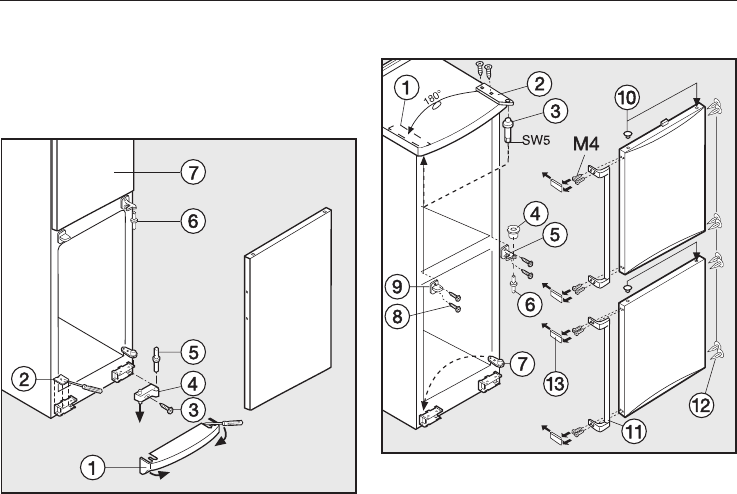

The appliance is supplied right hand
hinged. If left-hand door hinging is
required, follow the instructions below.
^
Open the lower door.
^ Use a screwdriver to lever plinth a
out, then pull it forwards and out.
^ Use a screwdriver to remove cover
b, then close the door.
^
Remove screw c completely.
^
Pull door support d together with
hinge pin e downwards, then tilt it
forwards and take it off.
^
Open the lower appliance door, move
it downwards and take it off.
^
With the upper door g closed, pull
hinge pin f downwards to remove it.
^
Open the upper door, and pull it
downwards and off.
Now re-fit all parts on the opposite side:
^ Remove the cover plate a.
^ Unscrew bearing block b and refit it
on the other side (see illustration).
^ Unscrew upper hinge pin c using
the spanner supplied and refit on the
oppositie side.
^
Place cover plate a on the other
side.
^
Exchange cover i in the middle of
the appliance with hinge bracket e.
To do this:
Undo screws h, pull cover i and
hinge bracket e off to the side, turn
around and refit into position on the
opposite side.
Changing the door hinging
41
