SERVICE STRATOSTEAM COUNTERTOP STEAMER
PAGE 38 OF 48 OWNER’S MANUAL 1185184
Figure 25

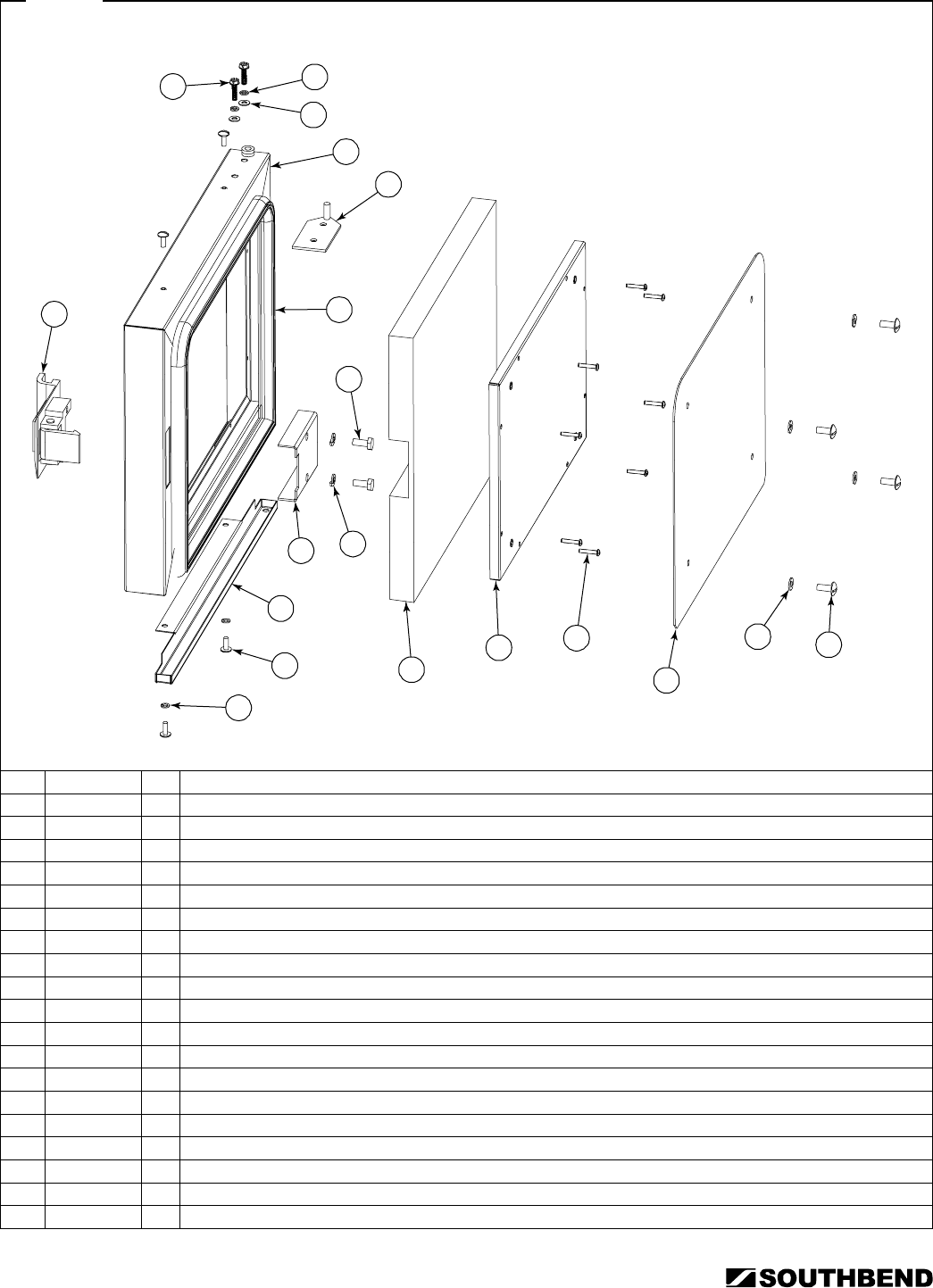

Door Assembly Parts
3
4
1
2
5
6
7
8
9
10
13
14
11
12
15
16
17
18
19
Note: The entire door, assembled, can be ordered (see page 36).
Key Part Number Qty Description
1 1177317 1
LATCH ASSEMBLY
2 1177344 4
SCREW, #10-24X3/4 SLOTTED HEX
3 1146527 6
WASHER #10 LOCK, SS, 300
4 1146526 4
WASHER, #10, FLAT
5 1185053 1
PANEL W/A, R2 STACKABLE
6 1185028 2
HINGE PLATE W/A
7 1185115 1
GASKET, DOOR R2 REDESIGN
8 1146268 2
BOLT, 1/4-20X5/8 HEX HEAD, SS
9 6600412 2
LOCK WASHER, SS
10 1177086 1
RETAINER
11 1185048 1
TRAY, DOOR CNDSATION
12 1146390 4
SCREW, 10-24X1/2, SS, TRUSS SLOT
13 PH-292 2
NYLON WASHER, 1/4 X 1/2 X 1/8
14 1185029 1
INSULATION, DOOR
15 1185023 1
SUPPORT W/A , DOOR GASKET
16 1173254 8
SCREW, 6-32X3/4, SELF TAP
17 1185118 1
RETAINER, DOOR GASKET
18 1180460 4
WASHER, FLAT #10
19 1173224 4
SCREW, 1/2-20 X 5/8 S, SLOT TRS
