9.0 - Parts List

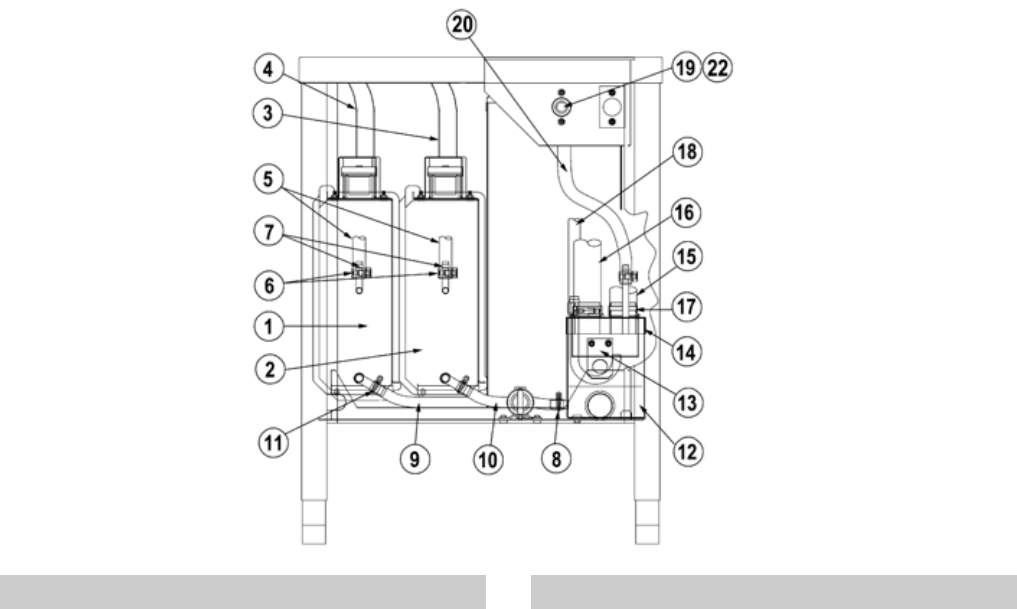

9.4 Steamer Base - Rear View
Key Description Part No. Key Description Part No.
1 Outer Steam Generator 096719 12 Drain Box 096791
2 Inner Steam Generator 096719 13 Drain Box Flap 099213
3 Top Steam Hose 099952 14 Drain Box Cover 096792
4 Bottom Steam Hose 099951 15 Top Cavity Drain Hose 088847
5 Water Inlet Hose 096773 16 Bot. Cavity Drain Hose 088846
6 Water Inlet Hose Clamp 071271 17 Cavity Dr. Hose Clamp 073259
7 Water Inlet Hose Bib 057217 18 Vent Pipe 096855
8 Steam Gen Drain Valve 071234 19 Water Inlet Valve 3 way 090827
9 Outer Gen Drain Hose 099913 20 Hose, Condensate 096771
10 Inner Gen Drain Hose 099914 21 Drain Kit (not shown) 127393
11 St Gen Dn Hose Clamps 095656 22 Water inlet adapter assy (BSPT) 122144
