MLC 104 Plus Series • Hardware Setup
2-5
Power Connection
To connect the external 12 VDC power supply:

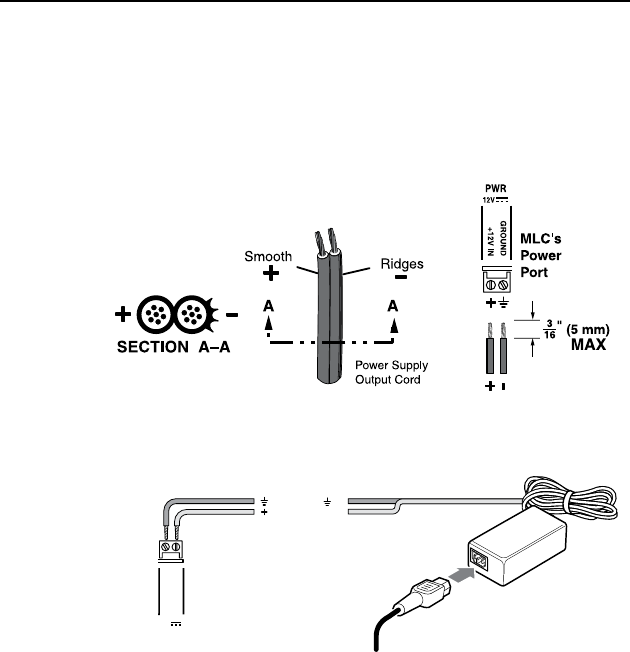

1. Strip the ends of the power supply wires as shown in the
diagram below.
2. Connect the stripped wires to the MLC's PWR port as
shown in the diagram below.
3. Connect the AC power cord between the power supply
and an AC power outlet.
MLC 104 Plus Series
Right Side Panel
12V
PWR
GROUND
+12V IN
Ground ( )
+12 VDC input
AC Power Cord
External
Power Supply
(12 VDC)
