Repair Information 4-9
5055-01x
Cover, RIP Board Removal

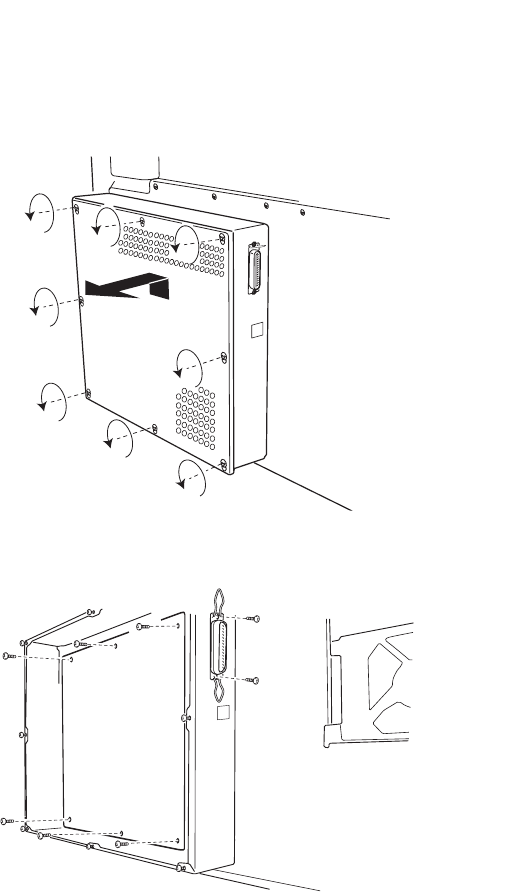

1. Loosen the eight screws and remove the RIP cover by sliding
upward.
2. Remove the three harnesses and one flat cable of the RIP
board connector.
3. Remove the two screws from the parallel port connector and the
screw from the USB connector.
4. Remove the eight screws from the RIP board together with the
parallel connector, and remove the RIP board.
