4-20 Service Manual
5055-01x

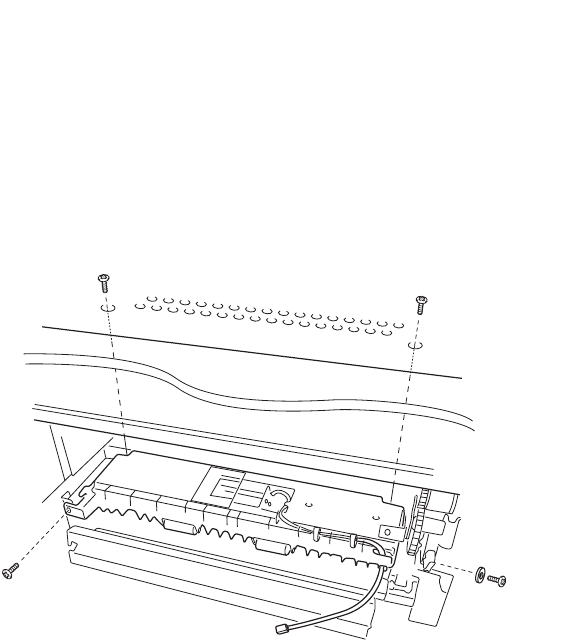

Paper Feed Frame Removal
1. Open the top unit and remove the RIP board cover, RIP board,
RIP box, and electronic box. Open the turn guide and paper
feed cover and pull out the duplex unit halfway.
2. Remove the belt unit.
3. Disconnect the connector and remove the three screws, and the
screw from the paper feed frame.
4. Remove the clip from the paper feed roller shaft and remove the
gear.
5. Remove the paper feed frame.
6. Disconnect the sensor cable.
