Repair Information 4-11
5055-01x

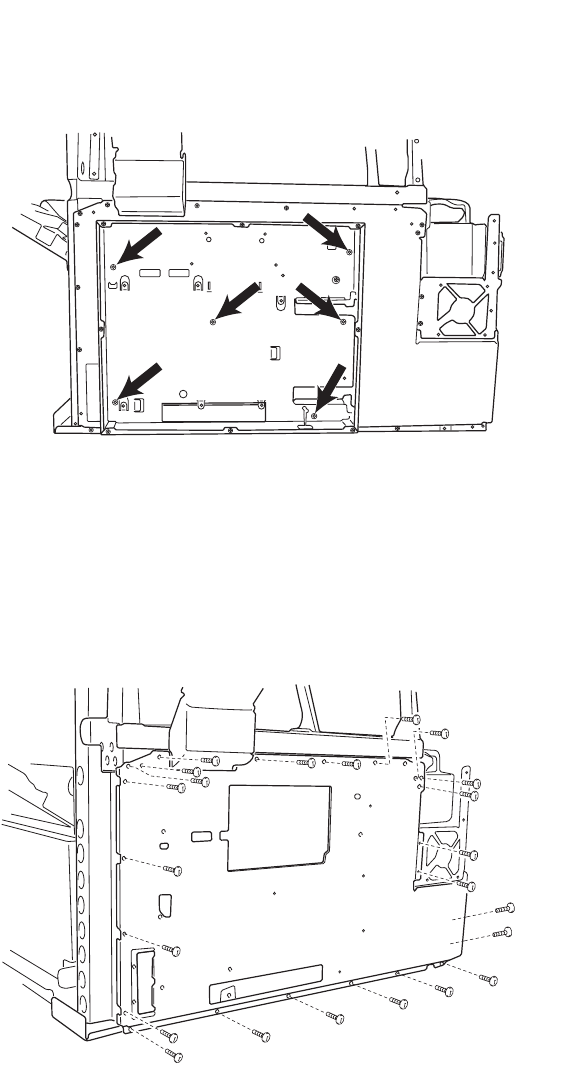

RIP Box Removal
1. Remove the five screws from the RIP box.
2. Slightly lift and remove the RIP box.
Electronic Box Removal
1. Open the top unit and remove the back cover, front cover,
cassette, turn guides and right side cover.
2. Remove the screws from the electronic box.
3. Disconnect the two cables from the rear of the electronic box
and remove the box.
