Repair Information 4-25
5055-01x

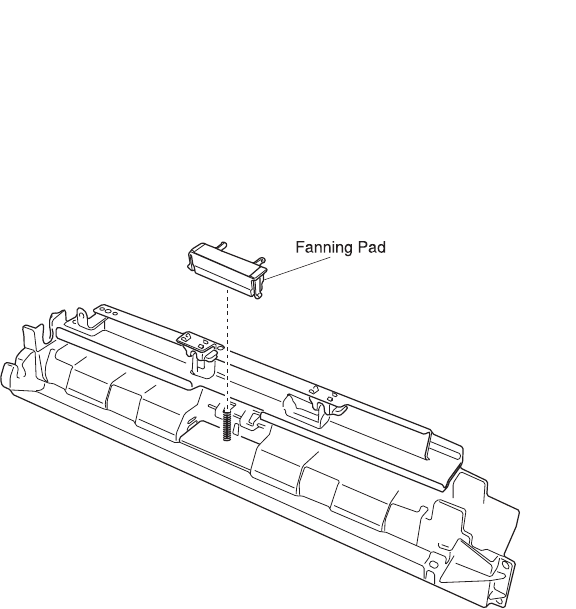

Fanning Pad Removal
1. Open the top unit and remove the upper cassette, front cover,
turn guide, multi-purpose feeder, right side cover, and multi-
purpose feeder roll.
2. Release clips at 4 positions and remove the fanning pad.
