OM-217 455 Page 13

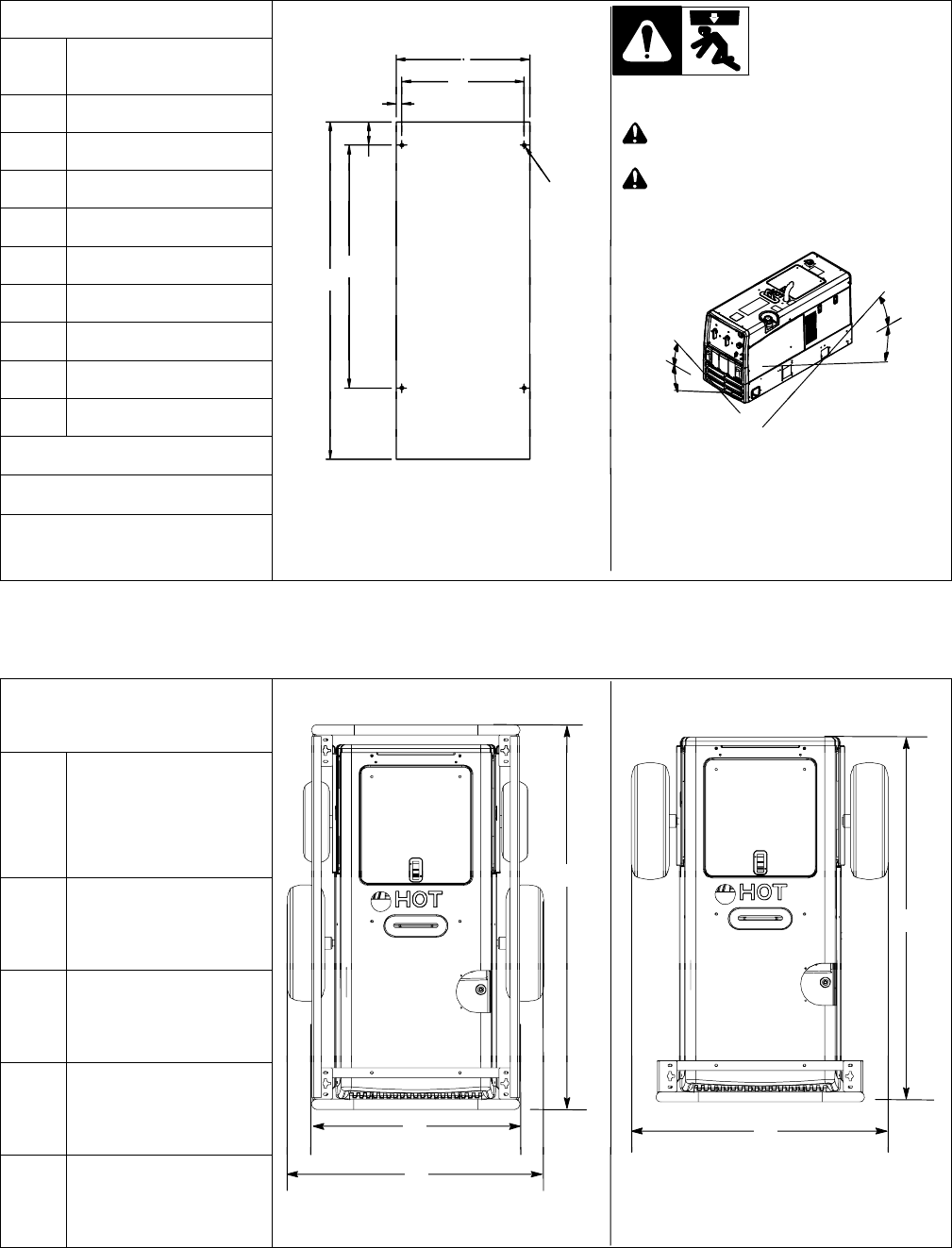

4-2. Dimensions, Weights, and Operating Angles
Dimensions
Height
35-1/2 in (902 mm)
(To Top Of Exhaust)
A
B
Width 20 in (508 mm)
B
C
! D d il l i ld
Depth 53 in (1346 mm)
D
! Do not exceed tilt angles or engine could
be damaged or unit could tip.
A 20 in (508 mm)
4 H l
D
G
! Do not move or operate unit where it
could ti
p
.
B 16-1/2 in (419 mm)
4 Holes
could tip
.
C 1-3/4 in (44 mm)
E
F
D 6-1/16 in (154 mm)
F
20°
E 32-3/4 in (832 mm)
20°
20°
F 51-3/8 in (1305 mm)
20°
20
G 13/32 in (10 mm) Dia.
Weight
Engine End
700 lb (318 kg)
E
ng
i
ne
E
n
d
7
00 lb (318 k
g
)
Lifting Eye Weight Rating
1280 lbs (580 kg)
800 426
804 249-A
4-3. Dimensions For Units With Optional Running Gear
Dimensions
Height
All Running Gear Options:
42-1/2 in (1079 mm)
(To Top Of Handle
Assembly)
C
A
Protective Cage Width:
26 in (660 mm)
D
C
B
Running Gear Width:
32 in (813 mm)
C
Protective Cage Length:
48 in (1219 mm)
B
A
D
Running Gear Length:
451/2 in (1156 mm)
B
