. A complete Parts List is available at www.MillerWelds.com
OM-217 455 Page 28

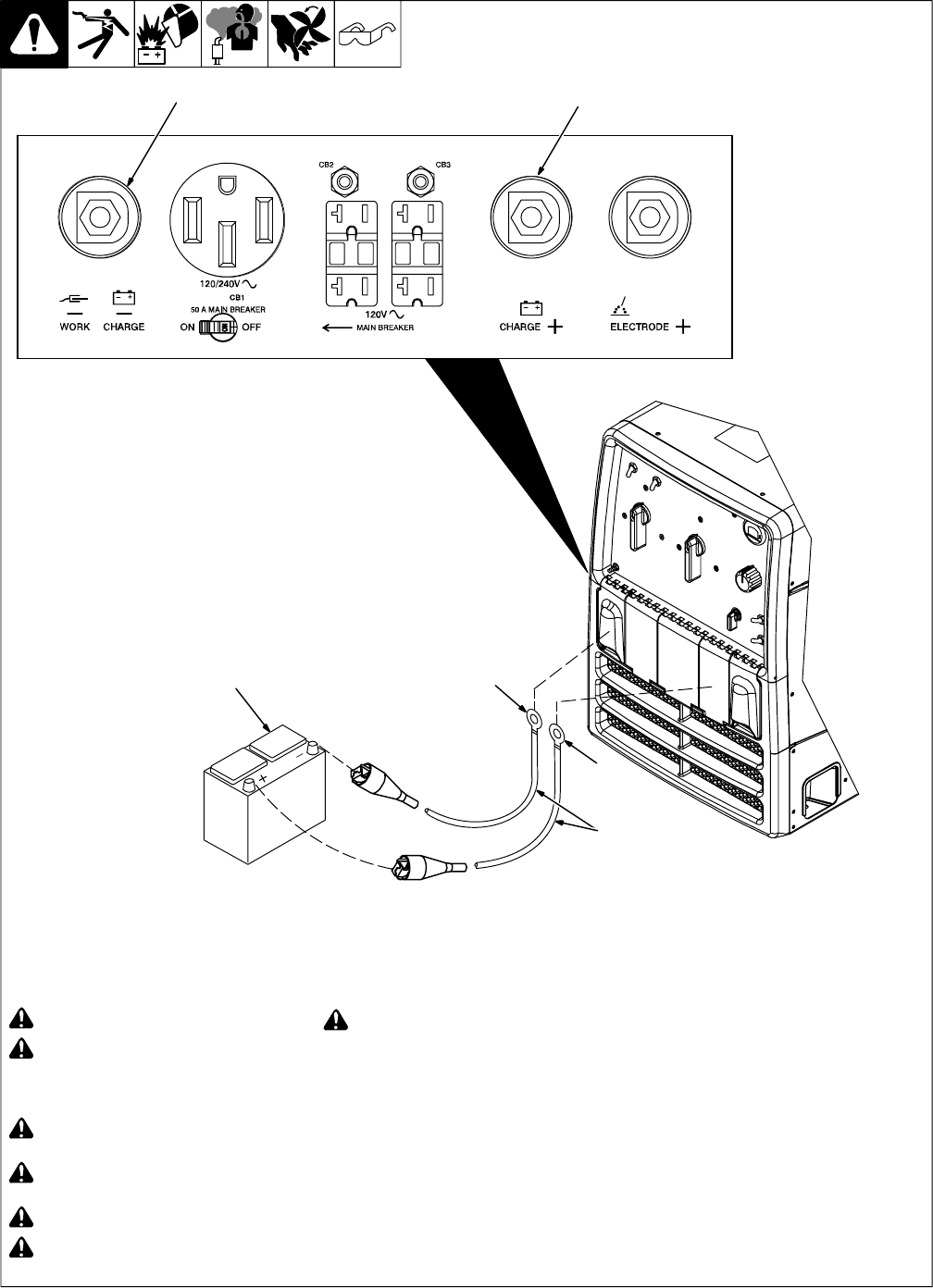

8-3. Battery Charge Cable Connections
! Stop engine.
! Do not charge a battery which has
loose terminals or one showing
damage such as a cracked case or
cover.
! Have only qualified persons do bat-
tery charging work.
! Keep cables away from moving
parts.
! Do not use damaged cables.
! Be sure charger output voltage
matches battery voltage.
! Read BCI Battery Service Manual
before charging.
. Before connecting to battery, place
Charge Voltage switch in position
matching voltage of battery being
charged.
1 Battery
2 Battery Charging Cables
Use less than 20 feet (6.1 m) of AWG #1 or
larger cable.
3 Terminal Lug
Use lugs of proper amperage capacity and
hole size for connecting to charge output
terminals.
Install suitable connectors on remaining
ends of battery cables.
4 Battery Charge Positive (+) Output
Terminal
5 Battery Charge Negative (−) Output
Terminal
. Connect charging cables to battery
charge output terminals before con-
necting to battery terminals.
Connect Battery Charge Positive (+) cable
to battery positive (+) terminal, and battery
Charge Negative (−) cable to battery nega-
tive (−) terminal.
Ref. 228 649-A / Ref. 804 397-A / S-0714
+
−
1
3
4
5
2
3
