9-2. Maintenance Label And Engine Maintenance Activities
4
3
3
1
8
2
7
6
5
7

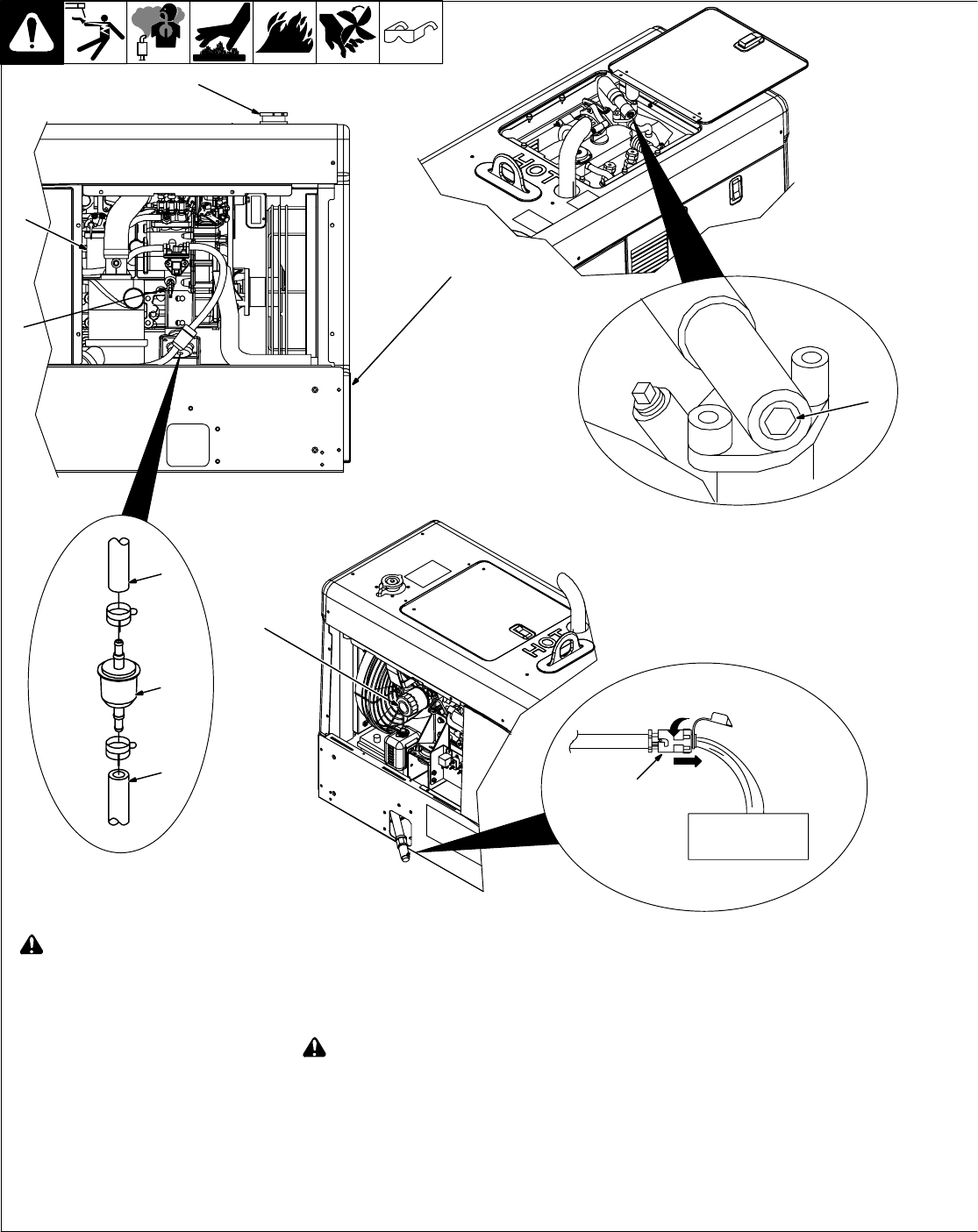

! Stop engine and let cool.
Oil And Fuel
1 Oil Drain Valve
2 Oil Filter
Change engine oil and filter according to en-
gine manual.
NOTICE − Close valve and valve cap before
adding oil and running engine.
Fill crankcase with new oil to full mark on dip-
stick (see Section 5-4).
3 Fuel Lines
Replace fuel lines if cracked or worn.
4 Inline Fuel Strainer
Install new filter as shown.
5 Fuel Filter
Replace filter according to engine manual.
Wipe up any spilled fuel.
Start engine, and check for fuel leaks.
! Stop engine, tighten connections as
necessary, and wipe up fuel.
Coolant
6 Radiator Cap
7 Radiator Drain Cocks (One located on
bottom of radiator)
Drain engine coolant according to proce-
dure in engine manual.
Add engine coolant as follows:
8 Thermostat Housing Plug
Remove thermostat housing plug. Add cool-
ant to radiator until coolant is at bottom of fill-
er neck and coolant trickles out of thermo-
stat housing plug hole. This ensures all air is
purged from the system.
Reinstall plug and radiator cap. Check cool-
ant level in overflow bottle.
Engine coolant is a mixture of water and
ethylene glycol base antifreeze. A solution
of 50% antifreeze and 50% water must be
used in this engine. Do not use 100% anti-
freeze or severe damage will occur.
