4. CONSOLE INTERFACE
4.1 CONNECT TO PC
RS-232 serial cable
Use the bundled RS-232 serial cable and attach the 9-pin female connector to the male connector on the
switch. Plug the other side of this cable to your PC.
Hyper Terminal
In Windows 95/98/2000/XP, launch HyperTerminal, create a new connection, and adjust settings as
below:
§ Emulation: VT-100 compatible
§ Baud per second: 9600
§ Data bits: 8
§ Parity: None
§ Stop bits: 1
§ Flow Control: None
To gain a demo, please see the Figure 4-1.

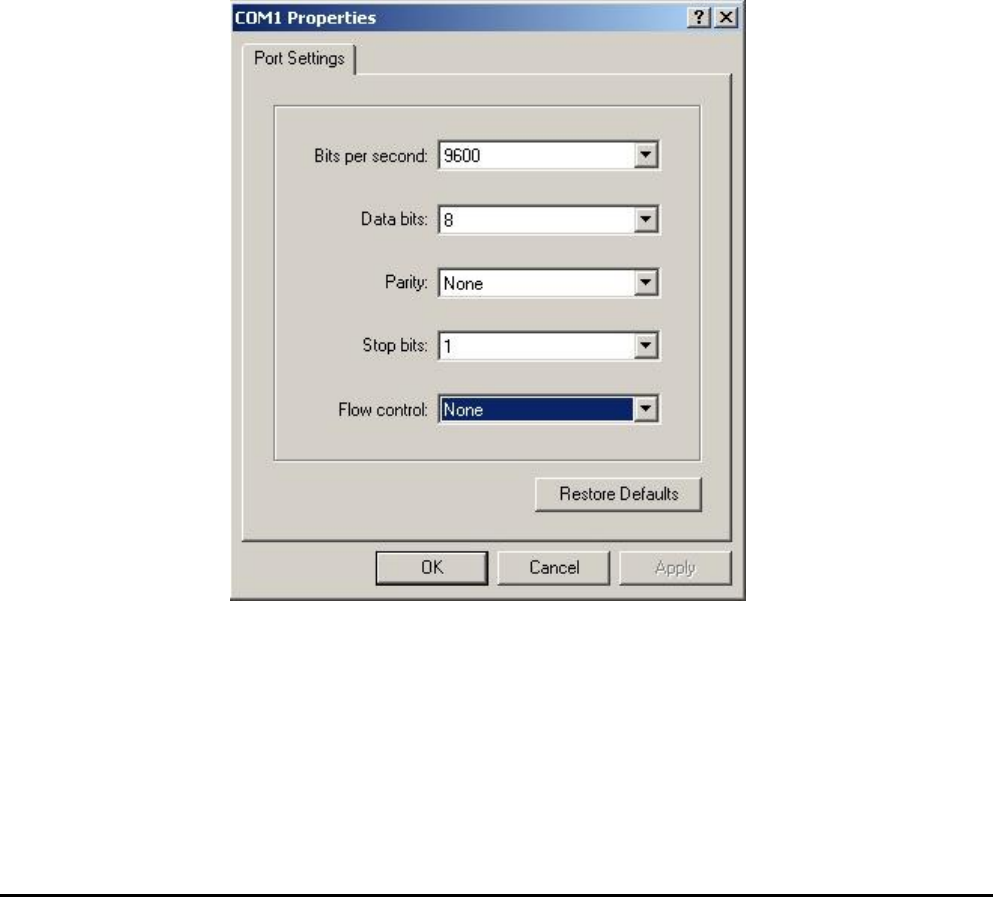

Figure 4-1 Port Settings for console interface
