- 33 -
4.3.3 Protocol Related Configuration
From the Switch main menu screen (see Figure 4-3), highlight Protocol Related Configuration and
press enter. The Status and Counters screen in Figure 4-47 appears.

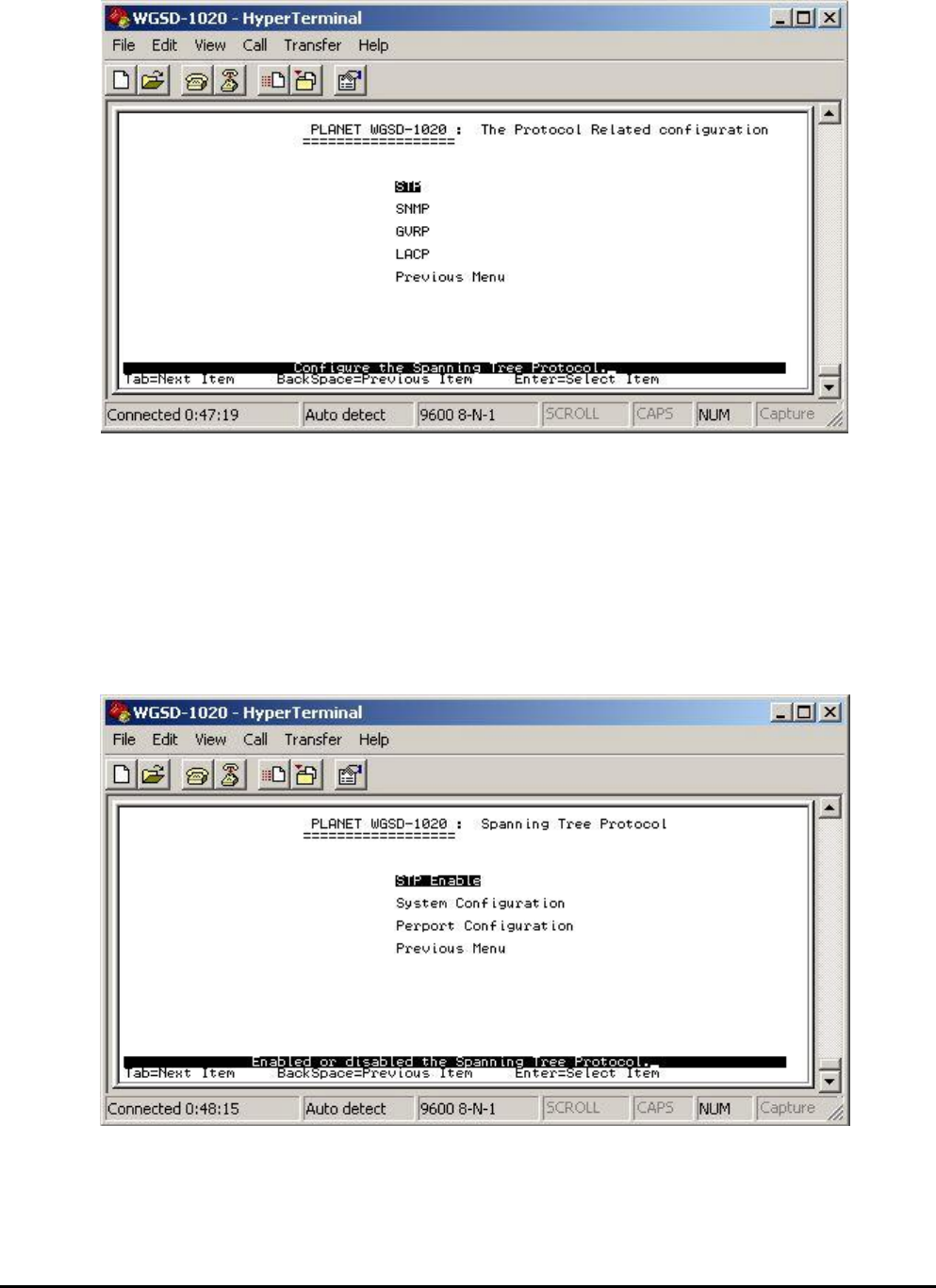

Figure 4-47 The Protocol Related Configuration screen
This subnet menu contains five items:
STP: please refer to chapter 4.3.3.1.
SNMP: please refer to chapter 4.3.3.2.
GVRP: provide disable or enable GVRP function.
LACP: provide LACP configuration.
Previous Menu: return to Main menu.
4.3.3.1 STP
Provide Spanning Tree configuration.
Figure 4-48 Spanning Tree Protocol screen
