- 76 -

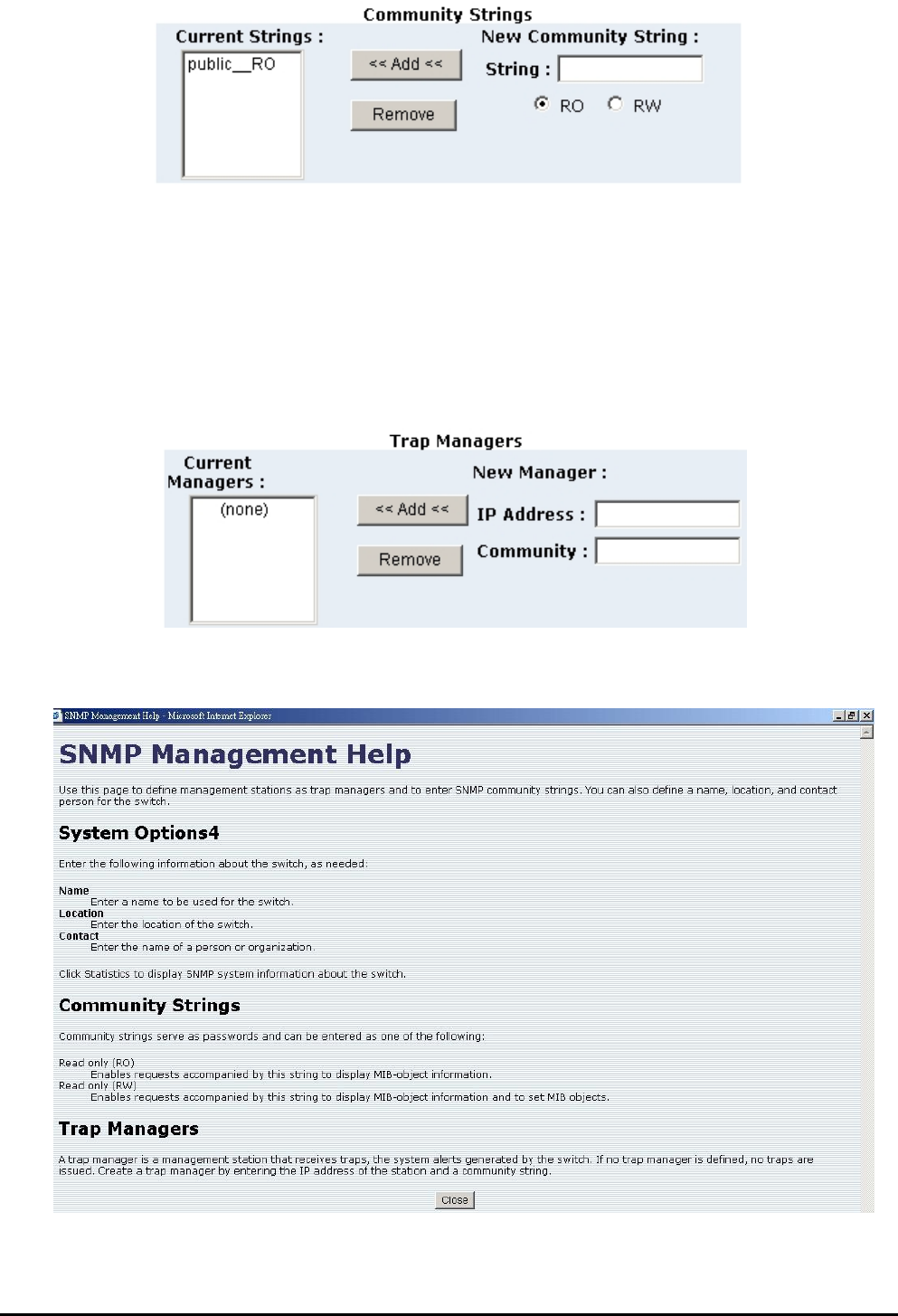

Figure 5-43 Community Strings Web Page screen
Please check the detail description of parameters as below:
RO / Read Only: enables requests accompanied by this string to display MIB-object information.
RW / Read Write: enables requests accompanied by this string to display MIB-object information and set
MIB objects.
Trap Manager
A Trap manager is a management station that receives traps, the system alerts generated by the Switch.
If Trap manager is not defined then there is no trap issued. Create a Trap manager by enter the IP address of
the station and community name.
Figure 5-44 Trap Managers Web Page screen
You can click” Help” button; the following screen in Figure 5-45 appears.
Figure 5-45 SNMP Management Help Web Page screen
Click “Close” to close this screen.
