- 74 -
5.4.9 Port Sniffer
The Port sniffer is a method for monitor traffic in WGSD-1020 networks. Traffic through ports can be
monitored by one specific port. Traffic through the in or out monitored ports will be duplicated into
sniffer port.

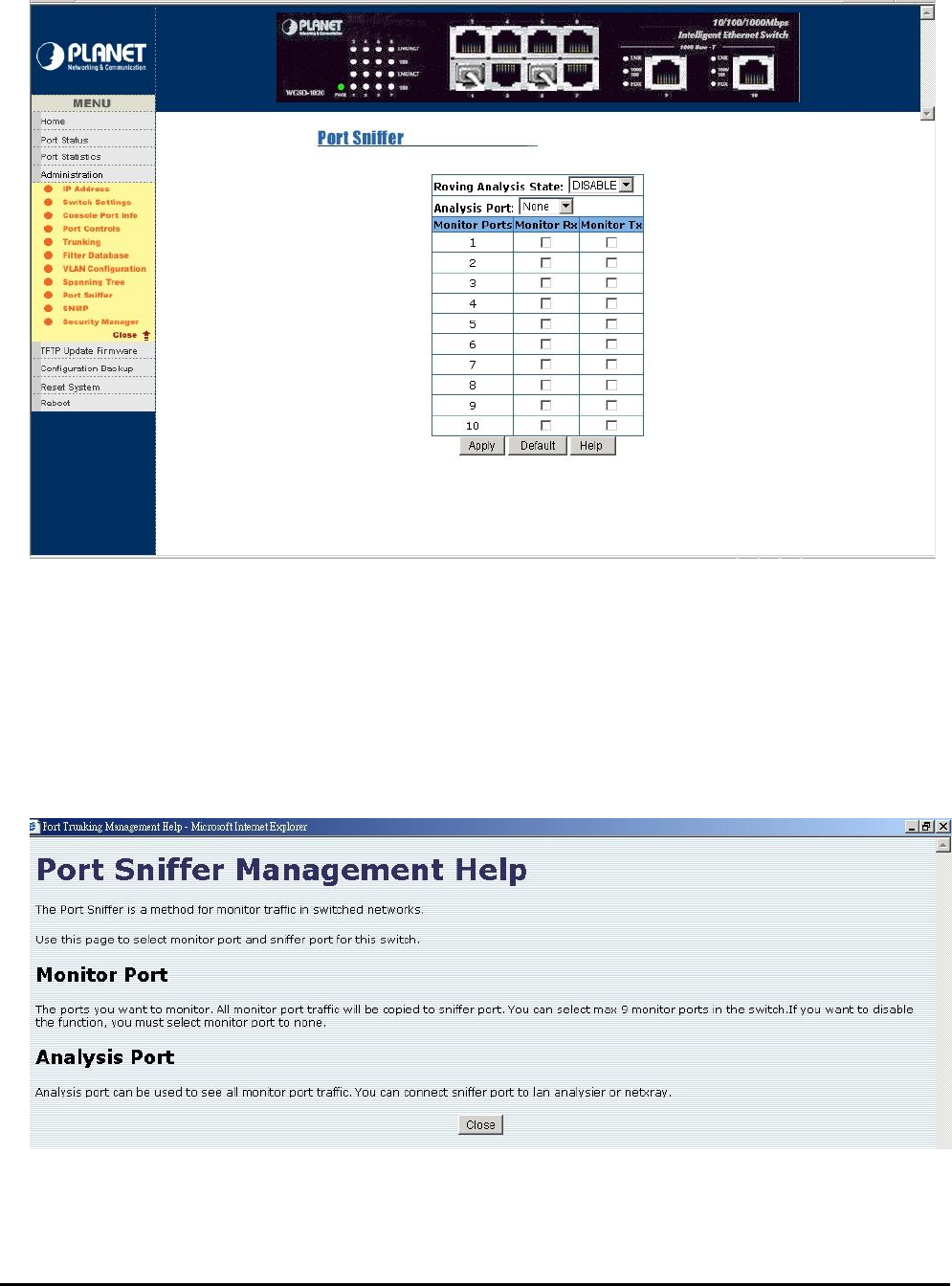

Figure 5-39 WGSD-1020 Port Sniffer Web Page screen
Please check the detail description of parameters as below:
Roving Analysis: provide disable or enable port sniffer function.
Analysis Port: allow seeing all monitor port traffic; you can connect sniffer port to LAN Explorer, Session
Wall, Sniffer Pro or Netxray.
Monitor RX: Monitored receive frames from specific port.
Monitor TX: Monitored send frames from specific port.
You can click” Help” button; the following screen in Figure 5-40 appears.
Figure 5-40 WGSD-1020 Port Sniffer Help Web Page screen
Click “Close” to close this screen.
