- 47 -
5. WEB MANAGEMENT
Before login the Web interface of WGSD-1020, please setup the IP Address with local serial console
port( RS232 port) and use this IP address to configure WGSD-1020 through the Telnet and Web interface.
Or modify your PCs IP domain to the same with WGSD-1020 then use the default IP address to remote
configure WGSD-1020 through the Telnet and Web interface.
5.1 Login in to the Switch
To access the Web-browser interface you must first enter the user name. The default user name is
"admin" without password. You will see the following screen comes out on the Web browser program:

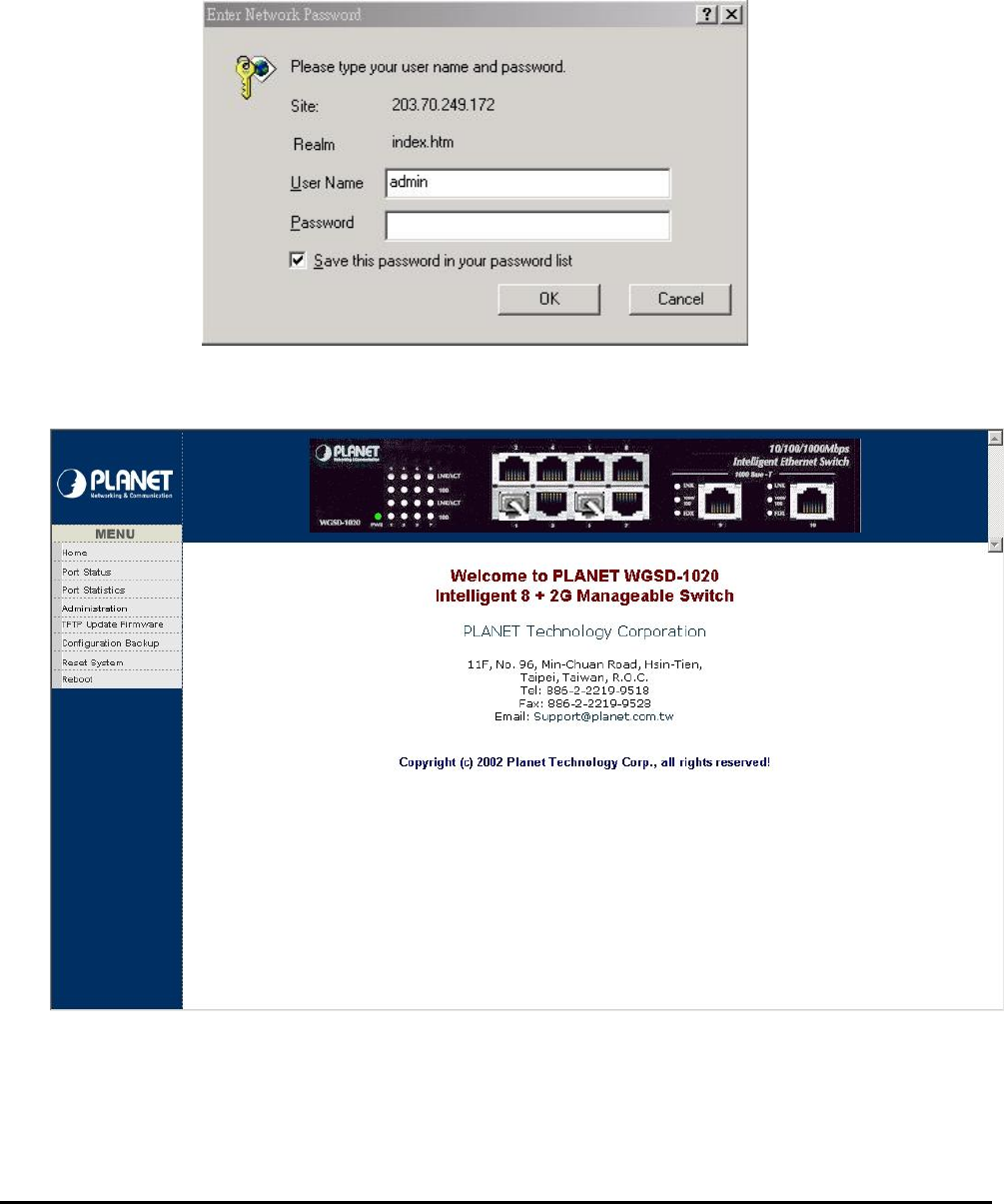

Figure 5-1 The WGSD-1020 login screen
After the Username and Password is entered, you will see the main menu screen.
Figure 5-2 The main screen of WGSD-1020 Web Page
