6.2 Power Module Replacement (continued)
6 Power Module (continued)

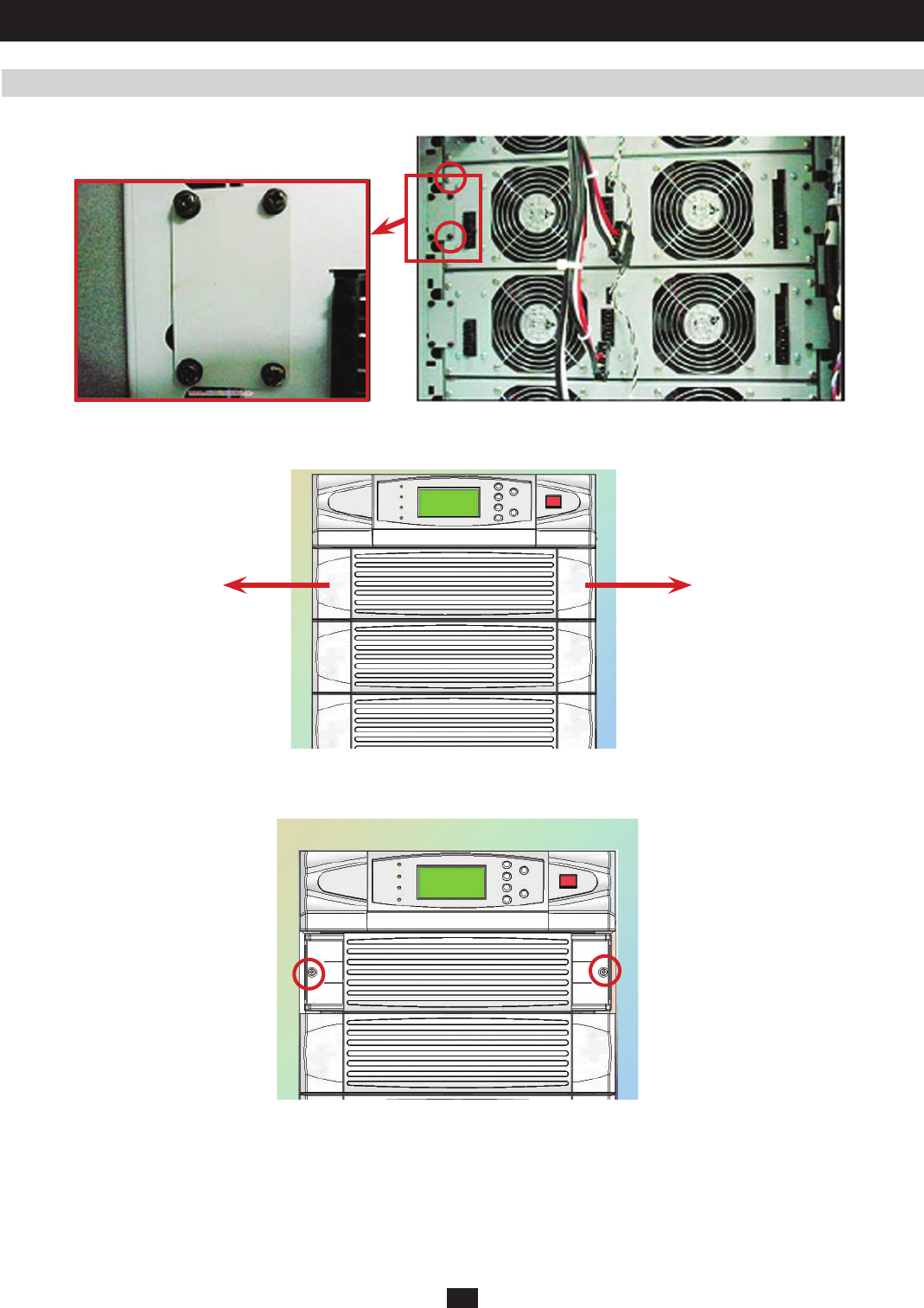

Fig 6.2e
Fig 6.2f
Fig 6.2g
e) Unscrew the front bezel (Figure 6.2g).
f) Remove the front bezel.
c) Unscrew the rear panel of the power module (Figure 6.2e).
d) Remove the corner bezels of the power module from the front side (Figure 6.2f).
