110

PRELIMINARY

5.2 Troubleshooting Flow Charts (continued)

5.2.14 “PS OUTPUT VOLT NOK”

5 Troubleshooting (continued)

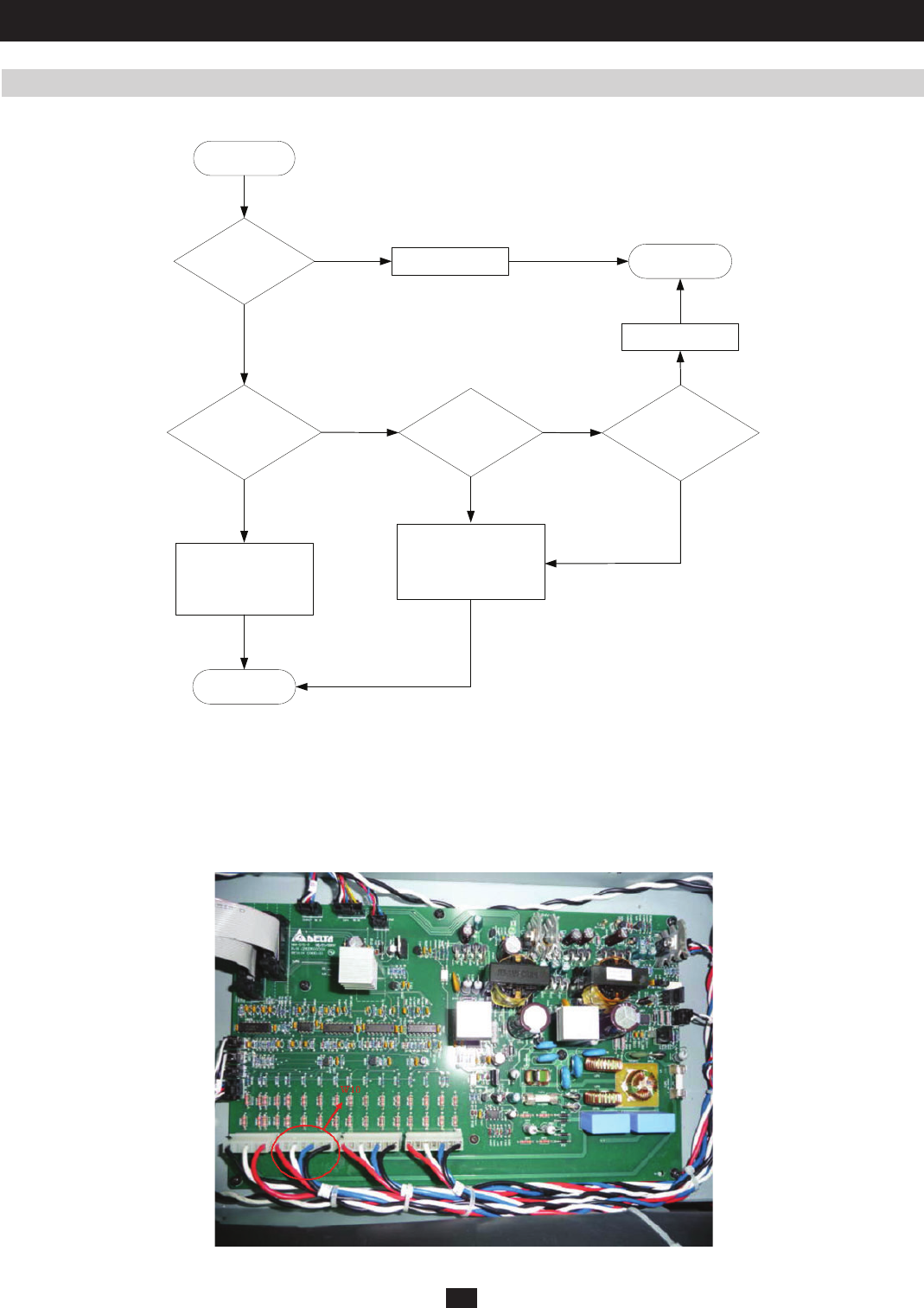

Fig 5.2.14a

Fig 5.2.14b

Note (1): Wire #10 connects CNP9 on the NH-SYS-P board with CNFC20 on the NH-SYS-FC board (Figure 5.2.14b).

Note (2): To learn about EEPROM parameter setting and calibration, refer to section 3.2.

Note (3): For the location of the NH-SYS-P board and NH-SYS-M boards, turn to section 1.5. To replace the NHS-SYS-M board, remove the

EEPROM chip from the old NHS-SYS-M board and insert it into the new one.

Note (4): Check the output voltage of each power module one at a time. If normal, check the next power module.

Start

N

Y

Calibrate parameter on

EEPROM

(2)

Replace P board or M

board

(3)

Are the

Actual value

and LCD value

the same ?

Is the

LCD value

zero?

Wire #10

(1)

connection

OK?

Is the

Fix the connection

Y

N

N

Is the output

wire connection

OK?

Fix the connection

Y

Y

N

END

END

Check if any power

module output voltages

are out of range

(4)
