REMOVE THE REFRIGERATOR
DOORS (cont.)

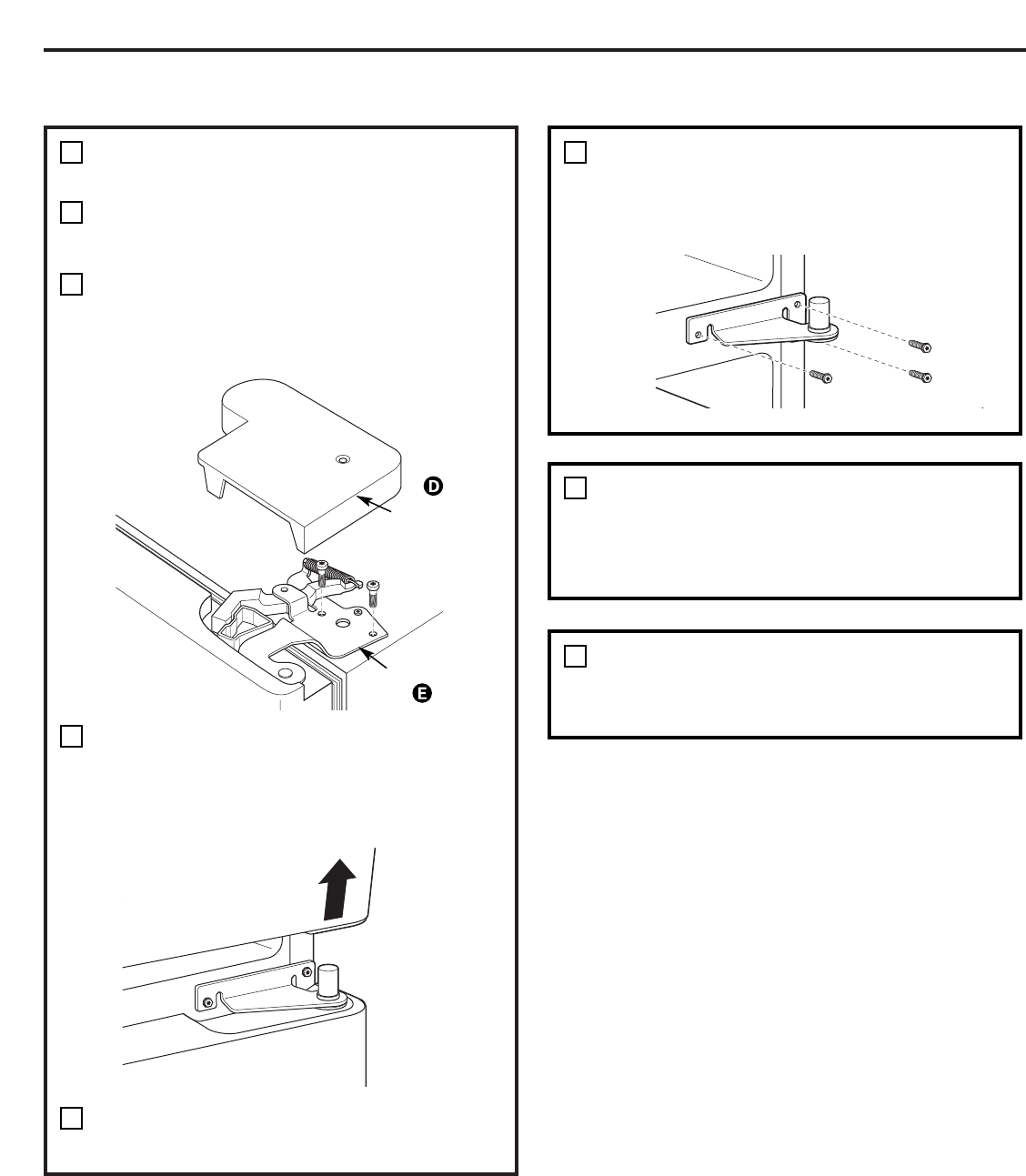

Remove the hinge cover on top of the
refrigerator door by removing the Phillips head
screws and pulling it up.
Using a 5/16″ socket ratchet/driver, remove the
bolts securing the top hinge to the cabinet. Then
lift the hinge straight up to free the hinge pin
from the socket in the top of the door.
Remove the tape and tilt the door away from
the cabinet. Lift the door off the center hinge
pin. Ensure that the plastic hinge pin thimble
remains on the hinge pin or inside door hinge
pin hole located in the bottom of the door.
Set the door on a non-scratching surface with
the inside up.
Installation Instructions
28
REMOVE OPPOSITE DOOR
Follow the same procedure on the opposite
door. There are no wires, water lines or center
hinge covers on the opposite side.
3
REMOVE FREEZER DRAWERS
Refer to the Removing the Freezer Drawers
section for instructions.
4
F
G
1
D
Hinge Cover
Top Hinge
REMOVE CENTER HINGE
Using a 5/16″ socket ratchet/driver, remove the
bolts securing the center hinge to the cabinet.
Set the hinge and bolts aside.
2
E
REMOVING THE DOORS (Double Door Refrigerator Models only) (cont.)
