AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
81

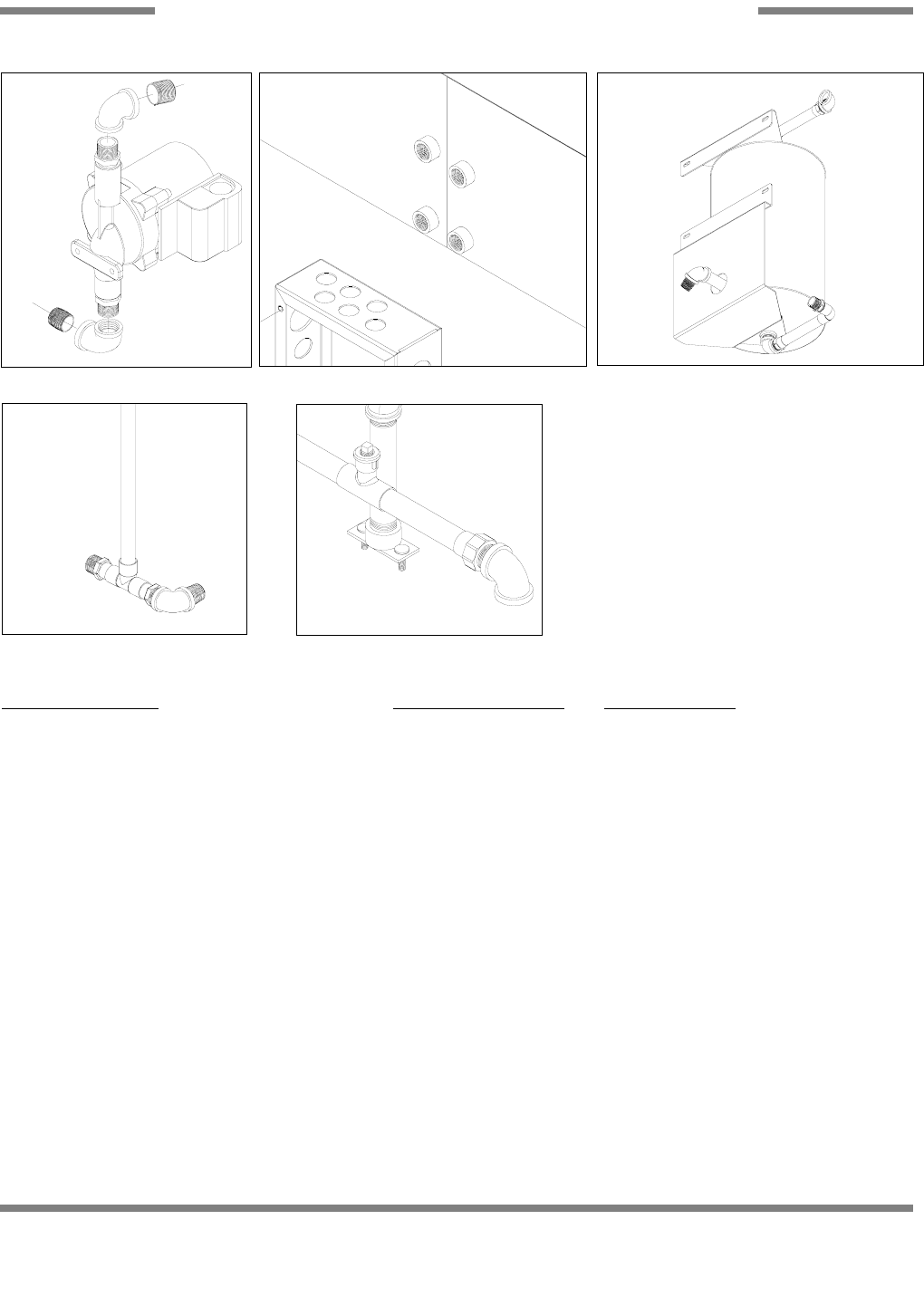

HOSE CONNECTIONS (CGP MODELS ONLY)
HOSE
ASSEMBLIES AJ-86CGP (L-R & R-L)
AJ-100CGP (L-R)
*Each hose assembly includes 2, 3/4” Pushlock Fittings part number 04730-011-94-00.
A - Hose, Recirculating Discharge 05700-002-52-74 05700-002-52-76
B - Hose, Recirculating Pump Suction 05700-002-52-75 05700-002-51-38
C - Hose, Wash Coil Assembly 05700-002-52-76 04720-011-94-10 (66”)
D - Hose, Wash/Fill Supply 05700-003-03-97 05700-003-03-99
E - Hose connection to existing gas booster outlet fitting.
F - Hose connection to existing gas booster inlet fitting.
G - Hose, Coil Recirculating 05700-002-17-71 05700-002-17-71
Gas Booster Connection Kit 05700-002-51-73 includes:
18 Feet of 3/4” Hose
4 - 3/4” Push Lock Fittings
A
B
A
C
G
G
C
E
D
Recirculating Pump Assembly
Gas Coil Weldment Rinse Booster Tank
Rinse Header Plumbing Assembly
Wash/Fill Plumbing Assembly
B
F
D
